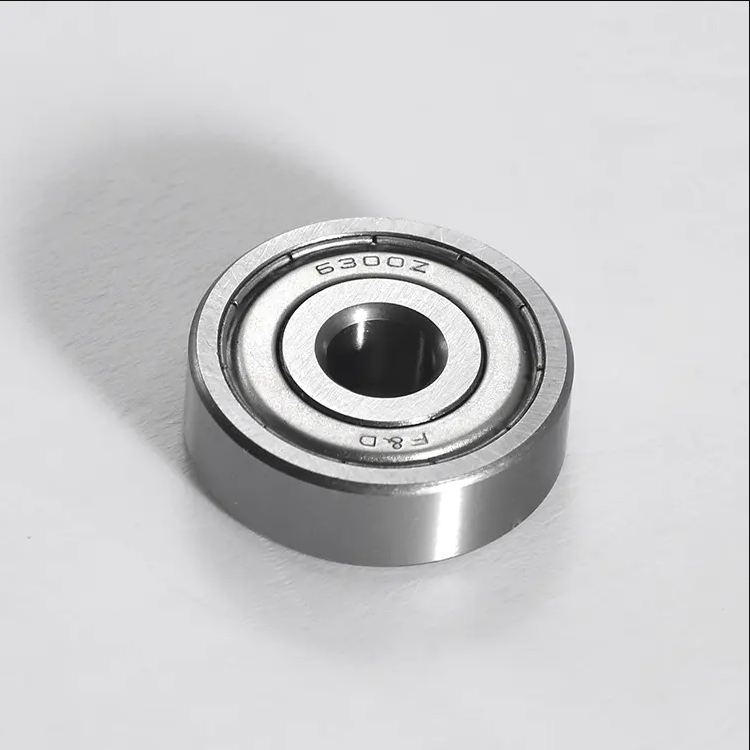

Deep groove ball bearing 6300-ZZ
Integral sealing prolongs bearing provider life
Simple, versatile and sturdy design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little renovation
Technical parameters of Deep Groove Ball Bearing 6300-ZZ
Introducing the 6300-ZZ Deep Groove ball bearing, the perfect solution for your machinery needs. This top-of-the-line bearing offers exceptional performance and service life, making it ideal for a wide variety of applications.
6300-ZZ deep groove ball bearings feature a durable construction designed to withstand heavy loads and severe operating conditions. Its high-quality materials and innovative design ensure reliable and consistent performance in even the most challenging environments.
Known for their precision fit and smooth operation, 6300-ZZ deep groove ball bearings keep your machinery running smoothly and efficiently. Its deep groove design provides greater axial and radial support while reducing friction for less long-term equipment wear.
Dimensions
| d | 10 mm | Bore diameter |
|---|---|---|
| D | 35 mm | Outside diameter |
| B | 11 mm | Width |
| d1 | ≈17.5 mm | Shoulder diameter |
| D2 | ≈28.68 mm | Recess diameter |
| r1,2 | min.0.6 mm | Chamfer dimension |

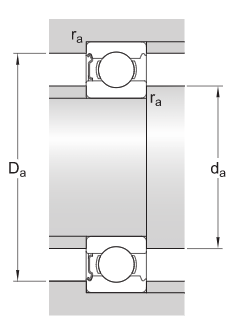

Abutment dimensions
| da | min.14.2 mm | Diameter of shaft abutment |
|---|---|---|
| da | max.17.4 mm | Diameter of shaft abutment |
| Da | max.30.8 mm | Diameter of housing abutment |
| ra | max.0.6 mm | Radius of shaft or housing fillet |
Calculation data
| Basic dynamic load rating | C | 8.52 kN |
|---|---|---|
| Basic static load rating | C0 | 3.4 kN |
| Fatigue load limit | Pu | 0.143 kN |
| Reference speed | 50 000 r/min | |
| Limiting speed | 32 000 r/min | |
| Minimum load factor | kr | 0.03 |
| Calculation factor | f0 | 11 |
Mass
| Mass bearing | 0.054 kg |
With their class-leading construction and reliable performance, 6300-ZZ deep groove ball bearings are an excellent choice for many different types of machinery, from industrial equipment to agricultural machinery. It is also suitable for applications where high speed and low friction are critical, such as in the automotive and aerospace industries.
At the heart of this extraordinary bearing is its unique seal design. The ZZ bearing designation indicates that the bearing is equipped with two metal dust shields to prevent dust from entering. The shielded design also provides additional protection from contaminants, extending machine life and performance.
In addition to excellent build quality and high performance, 6300-ZZ deep groove ball bearings are extremely easy to install. Its sleek and compact design ensures hassle-free installation, saving you time and money.
