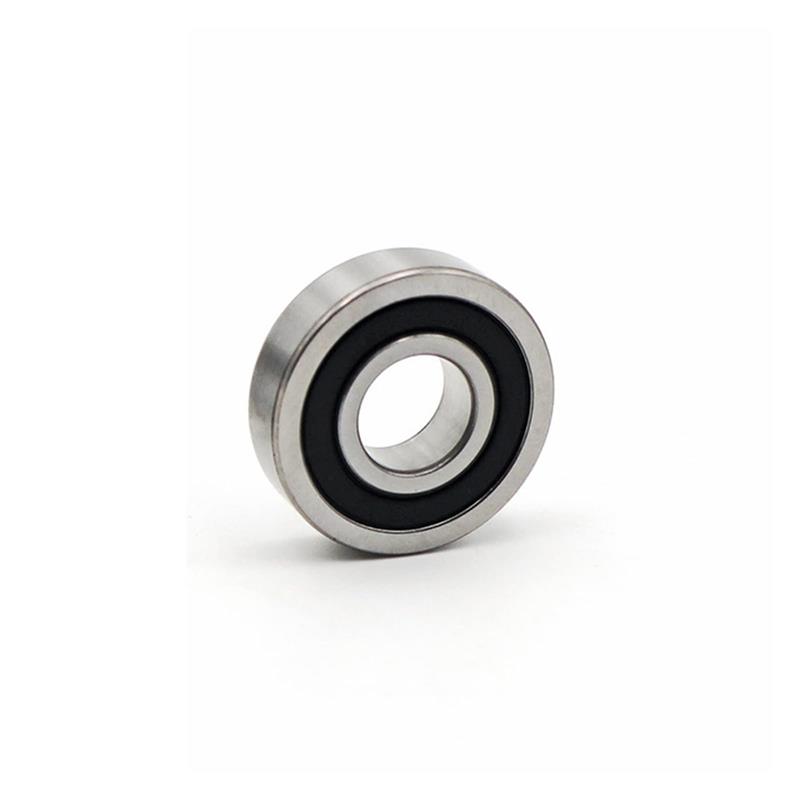

R8-2RS Inch size deep groove ball bearings
R8-2RS Single-row deep groove ball bearings with seals or shields are specifically flexible, have low friction, and are optimized for low noise and coffee vibration, which permits excessive rotational speeds. they accommodate radial and axial loads in each instruction, are smooth to mount, and require less renovation than many different bearing sorts. the vital sealing can considerably extend the bearing provider's existence as it continues lubricant within the bearings and contaminants out.
Indispensable sealing prolongs the bearing provider's life
Simple, versatile, and robust layout
Low friction and high-velocity functionality
Accommodate radial and axial masses in each direction
Require little upkeep
R8-2RS Inch size deep groove ball bearings
Introducing R8-2RS inch measurement Deep Groove Ball bearings, the excellent reply for all your excessive overall performance bearing needs. Our exceptionally expert crew of engineers and technicians have labored tirelessly to create a reliable, environmentally pleasant and fee fantastic product.
The graph of such bearings is flawlessly mixed with current science to make certain most accuracy and existence to the best extent. On the different hand, for the cruelest of environments, they are made completely of the easiest materials, making them the ideal desire for any annoying scenario.
At the coronary heart of our product is a most useful layout that gives you the pleasant overall performance even underneath heavy loads. The deep groove chart suggests higher auxiliary and stability, whilst the sealed improvement prevents dust and particles from being discharged, lowering the threat of contamination and damage.

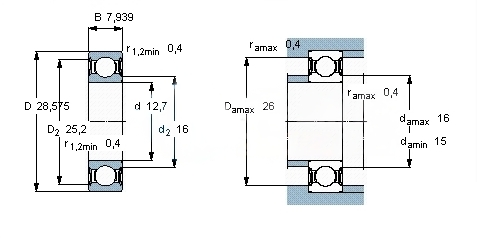

Detailed parameters and installation dimensions:
Part Number | R8-2RS Neutral |
Bearing Type | Deep Groove Ball Bearings Single Row |
Size | 12.7*28.575*7.94 mm, |
Original Equipment Manufacture(OEM NO.) | R8-2RS |
Bore | C (Cylindrical Bore) |
Seals Type | 2RS (Rubber Seal on Both Sides) |
Cage Design | S (Steel or Standard Cage) |
Radial internal clearance | Cn (Normal Internal clearance) |
Precision Rating | Standard class precision |
Type of lubrication | Standard class lubrication |
Thermal Stability | No Thermal Stability - Temperatures up to 120°C |
Weight | 0.018 kg |
5108 N | radial dynamic load capacity (Dyn. Cr), |
2413 N | radial static load capacity (Stat. Cor), |
27000 r/min Maximum RPM | Speed in grease |
32000 r/min Maximum RPM | Speed in oil |
