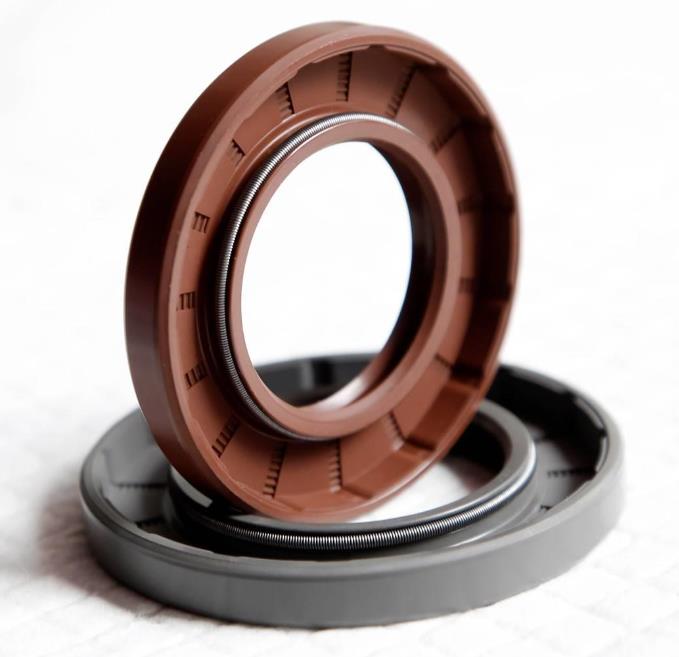

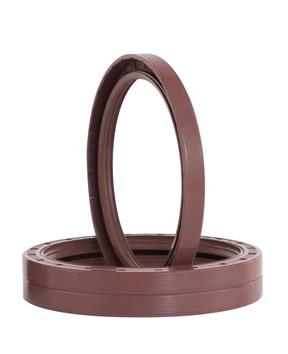

Oil seal TC12*28*7
It has excellent high temperature resistance, strong corrosion resistance, good mechanical properties, electrical insulation properties and anti-radiation properties.
TC rubber oil seal is made of high quality rubber material, resistant to wear. It is designed to withstand high temperatures, pressure and harsh environments. In precision bearings, TC oil seals help prevent lubricant from escaping from bearings or specific areas.

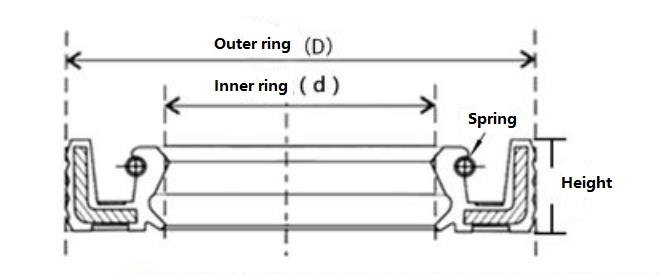

DIMENSIONS:
Outer ring: 28mm
Inner ring: 12mm
Height: 7mm
Material: Viton Ruber or nitrile rubber
Color: Black or Brown

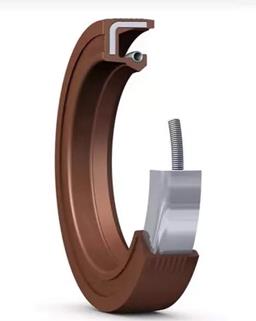

TC oil seal is a double-lip radial seal equipped with a clamping spring that operates at low pressure to prevent impurities from entering. The rubber coating enhances the sealing ability of the oil seal. The inner surface of the steel case is partially coated with rubber. The auxiliary sealing lip protects against contamination and dust with an additional dust lip. You can use this seal in contaminated environments. An appropriate lubricant should be used between the two seal lips to maximize performance during the service life of the seal.
