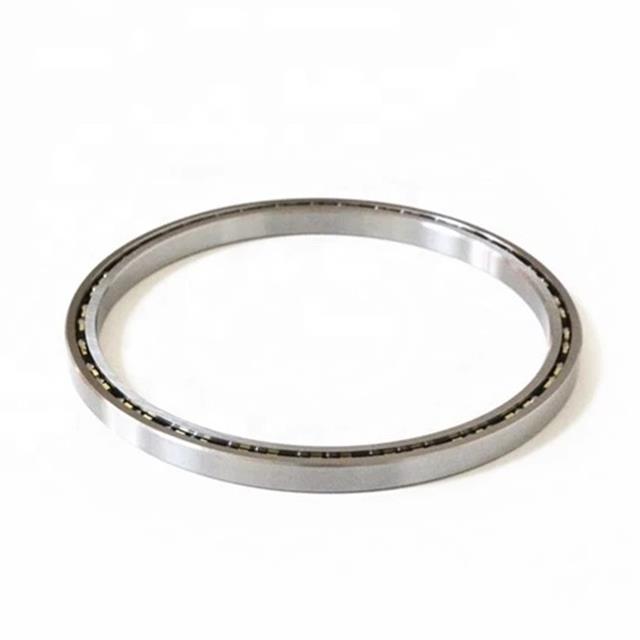

KA020CP0 thin section four-point contact ball bearing
The bearings are available with metric and inch boundary dimensions. Relying on the layout and collection the bearings may be furnished with chemical and corrosion resistance.
Accommodate radial and some axial hundreds in both directions
Thin go-phase
Light-weight
Low friction
High stiffness
Excessive walking accuracy
KA020CP0 thin section four-point contact ball bearing
Radial contact ball bearings with seals or shields are designed to accommodate radial loads and some axial loads in either direction. One bearing series is based on a single cross-section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are available with metric and inch boundary dimensions. Depending on the design and series the bearings can be provided with chemical and corrosion resistance.
New Designations | KA020CP0 |
Main demensions | 50.8 × 63.5 × 6.35 mm |
Inside diameter(I.D.) | 50.8 mm |
Outside diameter(O.D.) | 63.5 mm |
Thickness(W.D.) | 6.35 mm |
Radial dynamic load rating C | 2.49 kN |
Oil rpm | 8890 r/min Limiting speed |
Weight | 0.045 kg |
Category | Thin section deep groove ball bearings |
KA020CP0 Thin wall deep groove ball bearings with seals or shields are designed to accommodate radial masses and some axial masses in either direction. One bearing collection is primarily based on a single cross-segment which stays constant because the bore diameter will increase, main to sizable space and weight financial savings.
