6307 Deep groove ball bearing
Simple universal solid design
Low friction
High speed capability
Can withstand radial load and bidirectional axial load
Almost no maintenance required
6307 is a deep groove ball bearing, which has a 2RS type (rubber seal), ZZ type (metal seal) and open type (no seal).
Introducing the 6307 Deep Groove ball bearing - the ultimate solution for all your machinery needs! Designed with precision, durability and performance in mind, this versatile bearing is ideal for a variety of applications.
6307 deep groove ball bearings are engineered to provide superior power and control and are ideal for high-speed applications. Its inner and outer ring raceways are made of high-quality materials to ensure maximum strength and durability, while its precision-fitted rolling elements ensure smooth and reliable operation at all times.

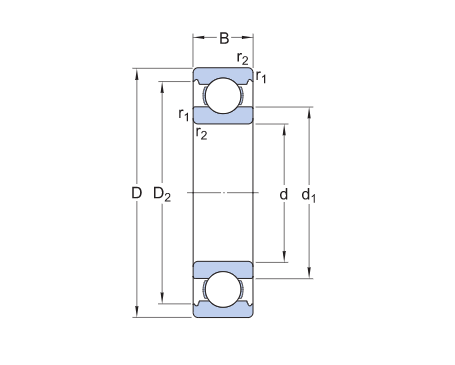

Dimensions
Main demensions | 35 × 80 × 21 | Bore Dia × Outside Dia × Width Dia (mm) |
ID | 35 mm | Inside diameter(I.D.) |
OD | 80 mm | Outside diameter(O.D.) |
T(B) | 21 mm | Thickness(W.D.) |
C | 33.5 kN | Radial dynamic load rating |
C0 | 19 kN | Radial static load rating |
Grease rpm | 9900 r/min | Reference speed |
Oil rpm | 20000 r/min | Limiting speed |
M | 0.471 kg | Weight |
Whether you are looking to increase equipment efficiency, extend equipment life or increase productivity, 6307 deep groove ball bearings are the perfect solution. Its superior design and construction make it suitable for a wide range of industries including automotive, aerospace, agriculture, construction and more.
With its high load-carrying capacity and excellent wear and tear resistance, this ball bearing is able to withstand heavy and continuous loads without loss of performance. Its low-friction design also ensures minimal heat build-up, making it ideal for high-temperature applications.
The 6307 deep groove ball bearings feature a simple design and high-quality materials for easy installation and maintenance. Whether you are an experienced mechanic or a novice DIY enthusiast, you can easily install and maintain this bearing without any hassle.
