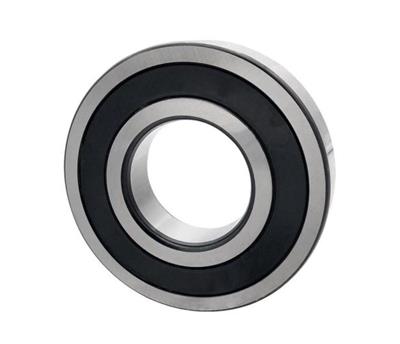

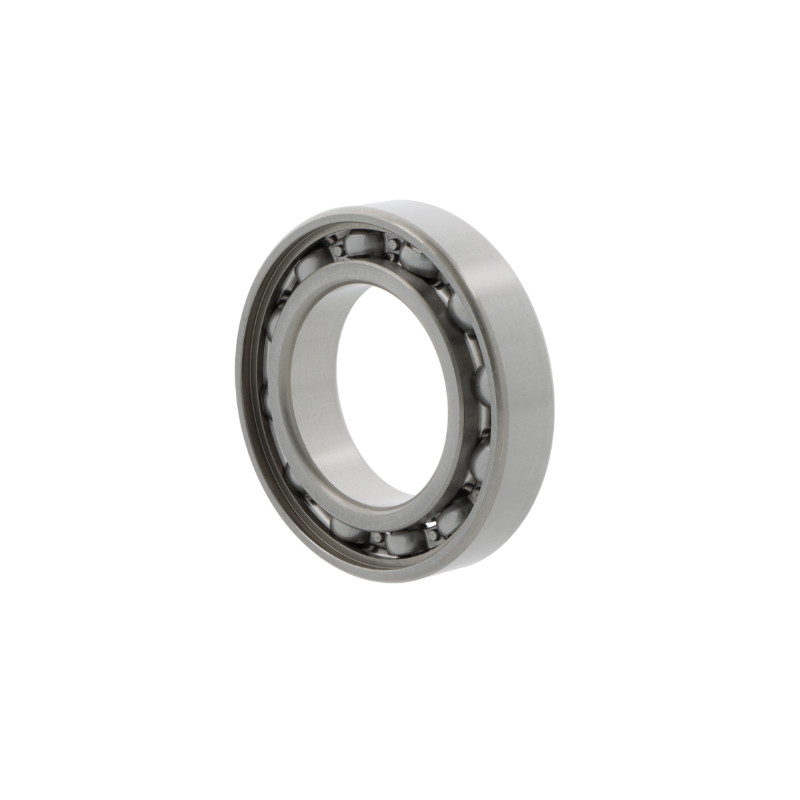

61805 Single row deep groove ball bearing
61805 single row deep groove ball bearings are particularly flexible, have low friction, and are optimized for low noise and occasional vibration, which allows excessive rotational speeds. they accommodate radial and axial masses in both instructions, are easy to mount, and require much less preservation than many different bearing types.
Simple, flexible, and strong design
Low friction
Excessive-velocity functionality
Accommodate radial and axial loads in both instructions
Require little preservation
61805 Single row deep groove ball bearing
Single-row bearing for helping radial loads
Normal radial interior clearance for purposes that do now not contain thermal growth or unusual precision
The wellknown cage evenly areas the balls for even load distribution and prevents contact to minimize friction, vibrations, and noise.
Part Number | 61805; 61805-2RS |
Bearing Type | Deep Groove Ball Bearings, Single Row |

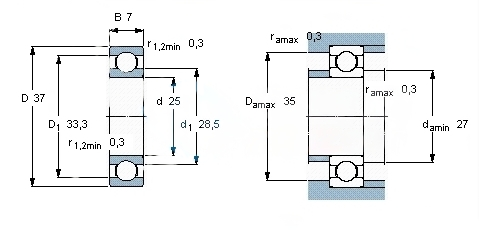

Size | 25 mm * 37 mm * 7 mm |
Weight | 0.0227kg |
Bore | C (Cylindrical Bore) |
Seals Type | No Seal |
Cage Design | S (Steel or Standard Cage) |
Radial internal clearance | Cn (Normal Internal clearance) |
Precision Rating | Standard class precision |
Type of lubrication | Standard class lubrication |
Thermal Stability | No Thermal Stability - Temperatures up to 120°C |
