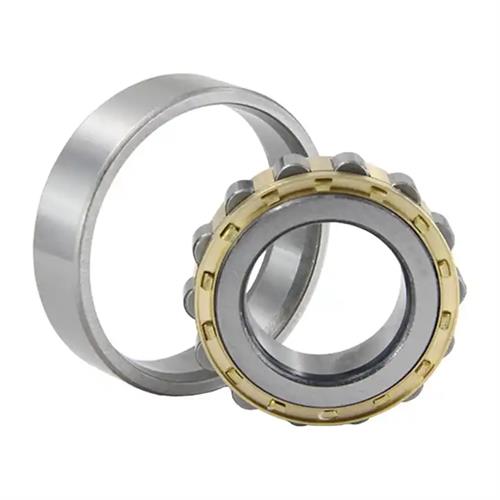

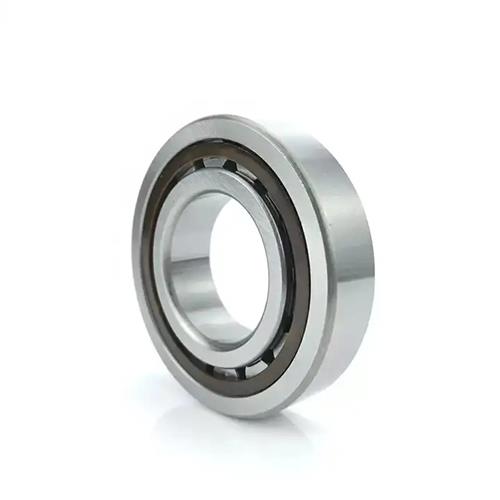

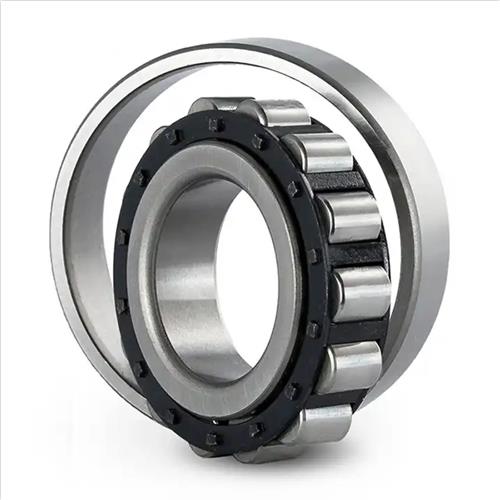

NJ206E Single row cylindrical roller bearings
The NJ206E Single Row Cylindrical Roller Bearings are meticulously crafted using high-quality materials, ensuring durability and longevity. The inner and outer rings are precisely designed to reduce friction, resulting in smoother rotation and improved efficiency. Additionally, the rollers are optimized to distribute the load evenly, minimizing wear and tear on your equipment.
One of the standout features of these bearings is their exceptional radial capacity. This means that they can withstand heavier loads and provide superior support, making them ideal for applications that operate under intense pressure or require high-speed performance.
Safety is a top priority, and these bearings are no exception. They are equipped with advanced sealing technology, effectively preventing dust, dirt, and other contaminants from entering the bearing.
Not only do the NJ206E Single Row Cylindrical Roller Bearings deliver exceptional performance, but they are also cost-effective. Their durable construction and extended lifespan reduce maintenance and replacement costs, ultimately saving you money in the long run.
Introducing the NJ206E Single Row Cylindrical Roller Bearings, a revolutionary solution designed to enhance the efficiency and performance of your machinery. Whether you are in the manufacturing, automotive, or construction industry, these bearings are tailored to meet your specific needs.
Product Description

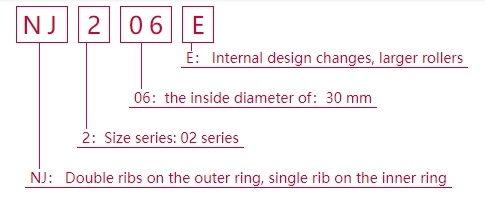

NJ206E bearing code description
NJ206E bearing properties
Type | Cylindrical roller bearings |
Inner hole type | Cylindrical hole |
Material | Hardened alloy steel |
Cage material | Nylon |
Limit speed-oil lubrication | 13000rpm |
Limit speed-grease lubrication | 11000rpm |
Structure | Single row |
Tolerance | ISO Class 0(RBEC 1) |
Oil filling hole | Without oil filling hole |
Radial clearance | CN |
Basic static load rating | 8450 lbf 37500 N 37.50 kN |
Basic dynamic load rating | 8750 lbf 39000 N 39.00 kN |
Seal type | Open |
Weight | 0.498 lb 0.226 kg |
Application temperature range | -40 to 250 ºF -40 to 120 ºC |
NJ206E bearing size specifications
Cylindrical roller bearings - separable inner ring with one rib and outer ring with two ribs - NJ type - Dimensions | |
d | 1.1811 in 30.000 mm |
D | 2.4409 in 62.000 mm |
B | 0.6299 in 16.000 mm |
Fw | 1.4764 in 37.500 mm |
J | 1.6181 in 41.100 mm |
r | 0.0394 in 1.000 mm |
da min | 1.3386 in 34.000 mm |
Da max | 2.2441 in 57.000 mm |
r1as max | 0.0236 in 0.600 mm |
