NU 210 ECM Single Row Cylindrical Roller Bearings
Nu210ECM Single row cylindrical roller bearings are designed to deal with excessive radial loads in a mixture with high speeds. having two indispensable flanges at the outer ring and no flanges on the internal ring, nu-design bearings can accommodate axial displacement in both directions. A crucial feature is a separable design, which allows mounting and permits the bearing components to be interchanged.
Excessive radial load-sporting potential
Low friction
Lengthy service lifestyles
Accommodate axial displacement in both directions
Separable layout

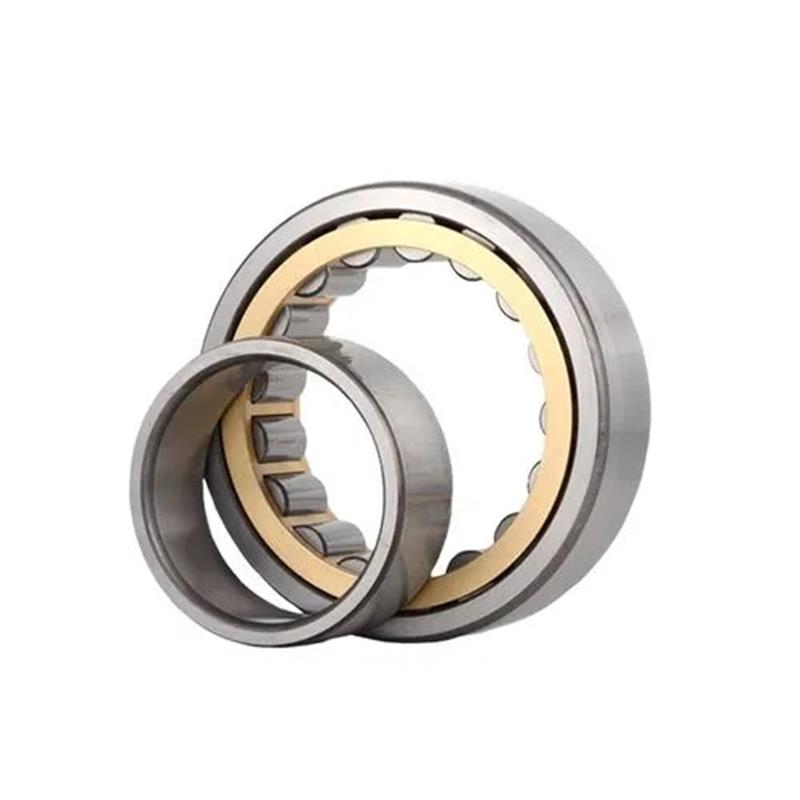

NU 210 ECM Single row cylindrical roller bearings
Have a single or multiple-row rolling element set based on cylindrical rollers. In contrast to the ball, the roller has a larger contact area perpendicular to the roller axis. As a result, it can transmit higher forces, has greater rigidity, and allows smaller rolling element diameters under the same load.
Detailed parameters and installation dimensions:
Cage - Material | Brass |
Manufacturer Part Code | NU 210 ECM |
Dimension Inside-id φ | 50 mm |
Dimension Outside-OD Φ | 90 mm |
Dimension Width-B | 20 mm |
Flanges | (2) Outer Ring |
Type Of Bore | Cylindrical Bore |
Ring Separation | O/R assembly separable I/R |
Operation Temp Range | Max of +300 °F |
Radial (Dyn.load Cr) | 16520 lbf |
Radial (Stat.load Cor) | 15620 lbf |
Lubrication Design (Grease) | Not Lubricated |
Sealing Ring Type | Unsealed |
Limiting speed (1/min) | 9000 RPM |
Material of Bearing | Steel |
Material of Cage | Brass |
Surface Coating | None |
Type of Closure | Open |
Bearing Weight (M) | 0.57kg |
Application: Piston Type Machines, Rolling Mills, Spindles/Machine Tools
