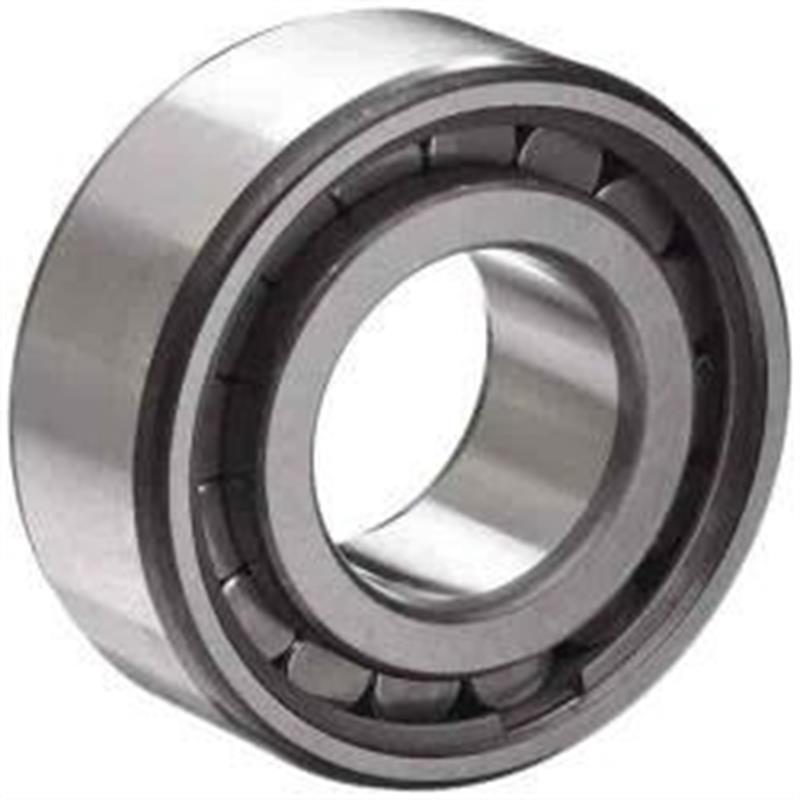

SL183004 Single-row full complement cylindrical roller bearings
SL18 3004 Single row full complement cylindrical roller bearings are designed to deal with very high radial masses in a mixture with slight speeds. the bearings include a range of rollers as they are now unprepared with a cage. having two necessary flanges on the inner ring and one flange on the outer ring can accommodate axial displacement in one course. a preserving ring on the outer ring holds the bearing together. the keeping ring ought not to be loaded axially in the course of operation.
Very excessive radial load-wearing capacity
High radial stiffness
Lengthy service lifestyles
Locate the shaft axially in a single route
SL183004 Single-row full complement cylindrical roller bearings
Cylindrical curler bearing with a removable outer ring appropriate for immoderate radial hundreds
Cn (normal) radial clearance for applications in which thermal growth is no longer a factor
Unmarried row curler bearing for excessive radial hundreds with low friction
Detachable outer ring in open bearing lets in for lubrication in location
Supports radial forces as nicely as constrained axial forces in one direction. Allows the outer and internal rings to be displaced in one axial course with appreciate to every other.
Detailed parameters and installation dimensions:
New Designations | SL183004 |
Main dimensions | 20 × 42 × 16 mm |
Inside diameter(I.D.) | 20 mm |
Outside diameter(O.D.) | 42 mm |
Thickness(W.D.) | 16 mm |
C | 30.5 kN Radial dynamic load rating |
C0 | 26.5 kN Radial static load rating |
Grease rpm | 7400 r/min Reference speed |
Oil rpm | 10500 r/min Limiting speed |
Weight | 0.11 kg |
Category | Single-row full complement cylindrical roller bearings |
