Thrust roller bearing 81207
Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

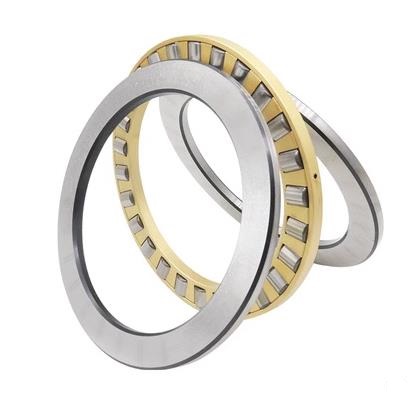

Thrust Cylindrical roller bearing 81207 brass cage
Dimensions
| d | 35 mm | Bore diameter |
|---|---|---|
| D | 62 mm | Outside diameter |
| H | 18 mm | Height |
| d1 | 62 mm | Outside diameter shaft washer |
| D1 | 37 mm | Bore diameter housing washer |
| B | 5.25 mm | Height shaft washer |
| r1,2 | min.1 mm | Chamfer dimension housing washer |
Thrust roller bearing belongs to the separation type bearing, easy to install.
Its rigidity is larger and occupies a small space.
It can withstand large axial loads and certain impact loads.
When installing bearings, the force should be uniform, and hard tools should not be used to beat directly. If heating is needed, the bearings should be evenly heated to 80-100 degrees, and then installed immediately.
