Spherical Roller Bearing 22215E
E cage spherical roller bearing.
Much stronger than common cage.
The latest international design, strong roller design.
It uses symmetrical spherical roller, two hardened steel stamping cage, inner ring without guard, middle retaining ring is cage guided.

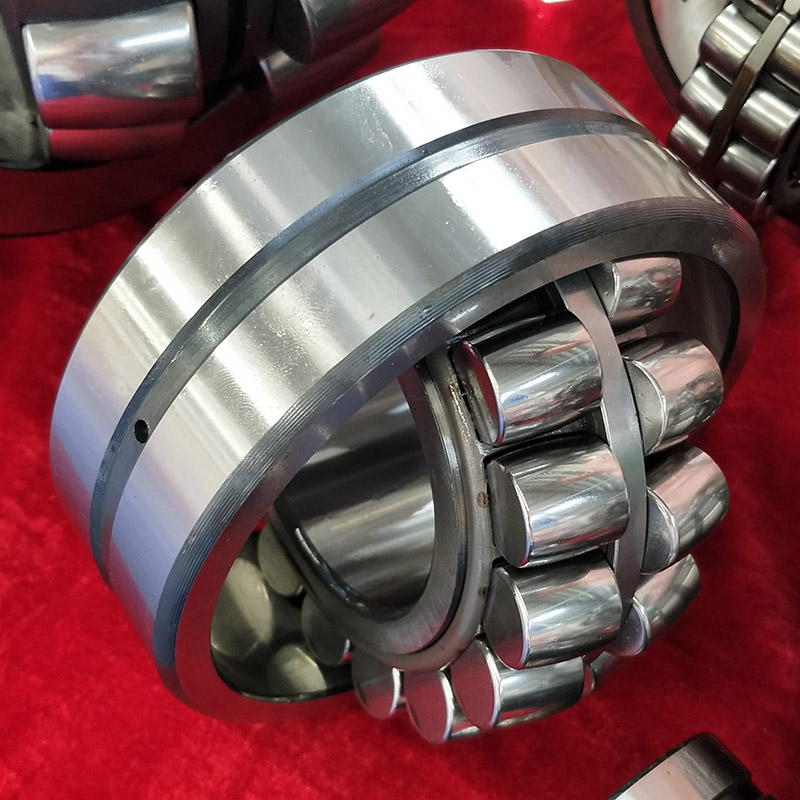

Spherical roller bearing 22215E

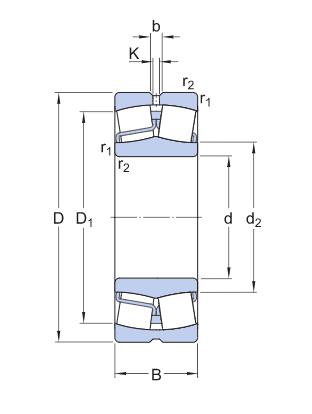

Dimensions
75 mm | Bore diameter |
130 mm | Outside diameter |
31 mm | Width |
≈87.8 mm | Shoulder diameter of inner ring |
≈115 mm | Shoulder/recess diameter of outer ring |
6 mm | Width of lubrication groove |
3 mm | Diameter of lubrication hole |
min.1.5 mm | Chamfer dimension |
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Details of Spherical Roller bearing
Papermaking machinery, reduction gear, railway, Rolling mill roller, Crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reduction gear.
Packaging and transportation of Spherical Roller Bearing
Dispatched to port or the assigned address from factory direcltly.
Service of Spherical Roller Bearing
The sales will select the most suitable products according to customer’s request. The engineer will track the usage throughout the process. The customer can communicate with engineer directly if there is any problem.
FAQ:
1. What is a 22215E spherical roller bearing?
The 22215E spherical roller bearing is a type of rolling-element bearing that is designed to handle high radial loads, as well as moderate axial loads in both directions.
2. What are the dimensions of the 22215E bearing?
The 22215E bearing has an inner diameter of 75mm, an outer diameter of 130mm, and a width of 31mm.
3. What are the benefits of using a 22215E spherical roller bearing?
The 22215E bearing is known for its high load-carrying capacity, long service life, and ability to handle misalignment and shock loads. It is also relatively easy to install and maintain.
4. What industries commonly use 22215E bearings?
22215E bearings are commonly used in industries such as mining, construction, and manufacturing, where heavy machinery and equipment requires reliable and durable bearings.
5. How do I properly install and maintain a 22215E spherical roller bearing?
Proper installation and maintenance of a 22215E bearing involves ensuring correct alignment, proper lubrication, and regular inspection to detect any signs of wear or damage. It is also recommended to seek guidance from a qualified bearing professional for best practices.
