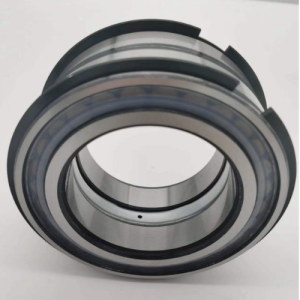

Full Complement Cylindrical Roller Bearings SL045024PP
Introducing our latest offering - full complement cylindrical roller bearings! These bearings are designed to meet the needs of heavy-duty applications that require high bearing capacity and space-saving solutions.
One of the most important features of these bearings is their ability to withstand heavy loads. This is made possible by the use of a full complement of rollers, which distributes the load evenly across the bearing. Compared to traditional belt cage bearings, full complement cylindrical roller bearings offer higher capacity within the same width, making them ideal for applications where space is limited.

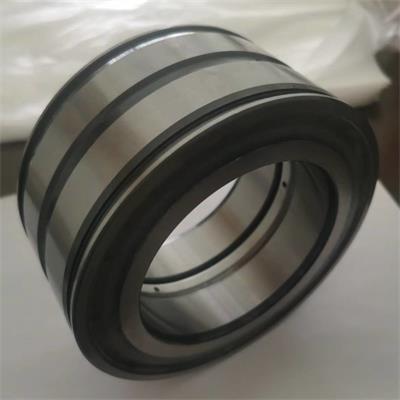

Full Complement Cylindrical Roller Bearings SL045024PP
Introducing Full Complement Cylindrical Roller Bearings SL045024PP – the last answer for your industrial bearing needs. Our bearings are designed and formulated with utmost precision and superior technological know-how to assurance most advantageous overall performance and performance for your machinery.
Made with excellent materials, our Full Complement Cylindrical Roller Bearings are rugged and can face up to heavy hundreds and difficult running stipulations barring breaking down, for this reason making sure best first-rate and longevity. Our merchandise are additionally resistant to cracking, breaking, and untimely wear, permitting them to function reliably over prolonged periods.
The revolutionary graph of our Full Complement Cylindrical Roller Bearings SL045024PP ensures that they can deal with a range of functions with ease, along with industrial transmissions, agricultural machinery, and development equipment, amongst many others. Additionally, our bearings come with an prolonged lifetime guarantee, supplying you with peace of idea that you have made an remarkable funding that will last.Our Full Complement Cylindrical Roller Bearings SL045024PP have an built-in sealing gadget to forestall infection from getting into the indoors of the bearing, making sure that your equipment stays clean, healthy, and operational. Additionally, our bearings are engineered with first-rate seals that furnish environment friendly lubrication, accordingly minimizing put on and tear, and extending the lifespan of your machinery.

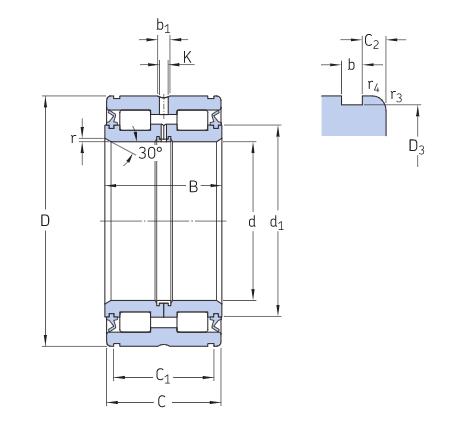

Dimensions
120 mm | Bore diameter |
180 mm | Outside diameter |
80 mm | Width |
79 mm | Outer ring width (sealed bearing) |
≈141.5 mm | Shoulder diameter inner ring |
176 mm | Snap ring groove diameter at outer ring |
164 mm | Raceway diameter outer ring |
71.2 mm | Distance between two snap ring grooves of the outer ring outside surface |
+0.2 mm | Tolerance for distance C1 |
3.9 mm | Distance outer ring side face - snap ring groove (sealed bearing) |
4.2 mm | Width snap ring groove outer ring |
7 mm | Width annular lubrication groove outer ring |
3.5 mm | Diameter lubrication hole (outer ring) |
min.1.8 mm | Chamfer dimension (sealed bearing) |
min.0.6 mm | Chamfer dimension |
Structure of Full Complement Cylindrical Roller Bearings
Full Complement Cylindrical Roller Bearing has single row kind, double row type and 4 row type. cylindrical roller and raceway are linear touch type. internal ring and outer ring are separate type.
Service of Full Complement Cylindrical Roller Bearings
The income will choose the most appropriate merchandise in keeping with consumer’s request. the engineer will music the usage during the procedure. the consumer can speak with engineer immediately if there is any problem.
