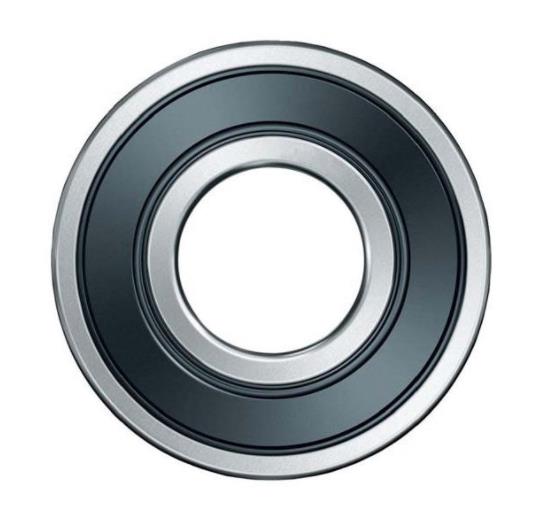

Deep groove ball bearing 6026-2RS
Simple design, long service life, easy maintenance.

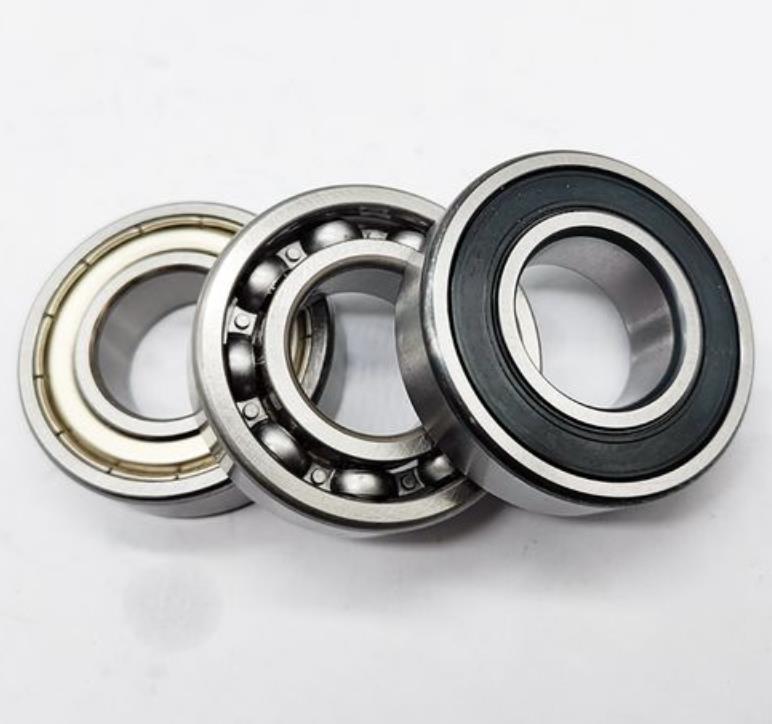

It is divided into single row type, double row type, open type and sealed type. Due to current production technology, open-type bearings can be transferred to the outer ring groove for seal or protection. Due to low friction torque, it's very suitable for high-speed areas.
The characteristics of deep groove ball: noise is reduced by more than 50%, friction force is reduced by more than 35%. That's a low standard for a deep groove ball bearing. The main reason for these performance improvements is the more optimized contact design of the rolling parts in the inner ring of the product. The quality of the ball is better combined with the raceway.

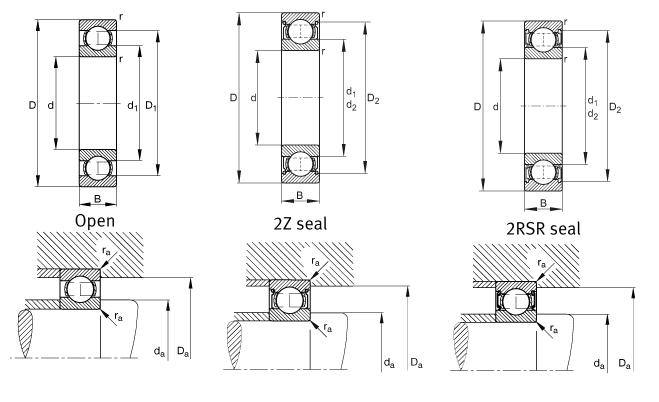

Dimensions
130 mm | Bore diameter |
200 mm | Outside diameter |
33 mm | Width |
≈152.6 mm | Shoulder diameter |
≈181.4 mm | Recess diameter |
min.2 mm | Chamfer dimension |
Calculation data
| Basic dynamic load rating | C | 112 kN |
|---|---|---|
| Basic static load rating | C0 | 100 kN |
| Fatigue load limit | Pu | 3.35 kN |
| Limiting speed | 2 000 r/min | |
| Minimum load factor | kr | 0.025 |
| Calculation factor | f0 | 15.8 |
Mass
| Mass bearing | 3.32 kg |
open type, ZZ type, 2RS type all are available.
Dispatch:
Dispatched to port or the assigned address from the factory directly.
Service:
The sales will select the most suitable products according to the customer’s request. The engineer will track the usage throughout the process. The customer can communicate with the engineer directly if there is any problem.
Crafted from high-quality materials, the BEARING 6026 is built to withstand even the toughest industrial environments. Its heavy-duty construction includes precision-engineered ball bearings that are designed to provide superior strength and reduced friction.
One of the hallmarks of the BEARING 6026 is its versatility. Suitable for use in a wide range of applications, from agricultural equipment to industrial machinery, this bearing is a top choice for those seeking superior performance and durability.
With a maximum operating temperature of 120°C, the BEARING 6026 is capable of handling even the most demanding operating conditions. Its precision-engineered construction ensures that it can withstand high loads and high speeds, making it ideal for use in a range of heavy-duty industrial applications.
But performance isn't the only feature that sets the BEARING 6026 apart. This bearing also boasts an impressive lifespan, thanks to its exceptional resistance to wear and tear. This means that it offers long-lasting performance, even in high-stress environments.
In summary, the BEARING 6026 is an exceptional product that combines superior design, advanced engineering, and exceptional durability. Whether you're working in agriculture, mining, or any other heavy industry, this bearing is sure to exceed your expectations.
