N213ECP Cylindrical Roller Bearing
High radial load carrying capacity
Low friction
Long carrier life
Accommodate axial displacement in each directions
Separable format

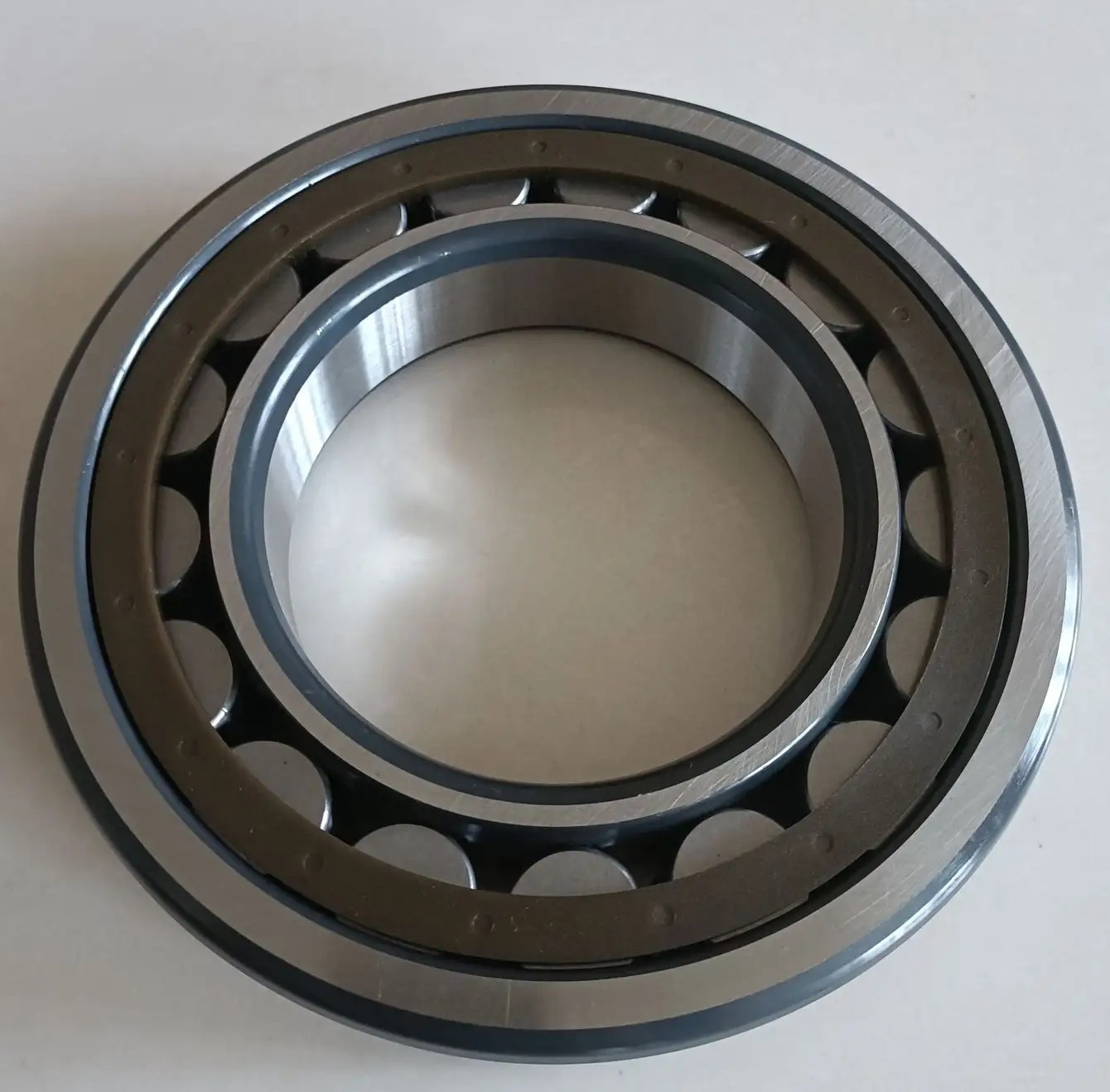

N213ECP cylindrical roller bearing
Single row cylindrical curler bearing, N design
Single row cylindrical curler bearings are designed to accommodate excessive radial hundreds in aggregate with excessive speeds. Having two vital flanges on the internal ring and no flanges on the outer ring, N sketch bearings can accommodate axial displacement in each direction. A vital function is a separable design, which allows mounting and permits the bearing elements to be interchanged.
Introducing the N213ECP Cylindrical Roller Bearing, a high-quality durable bearing designed for a variety of applications. Manufactured to exacting standards using precision engineering and advanced manufacturing techniques, this Roller Bearing is designed to provide superior performance and long-lasting durability.
At the heart of the N213ECP Cylindrical Roller Bearing is a solid steel cage that provides exceptional strength and stability even under the most demanding conditions. Precision-engineered to ensure optimum performance, the cage is supported by high-quality rollers that work together to provide smooth, efficient and reliable performance.

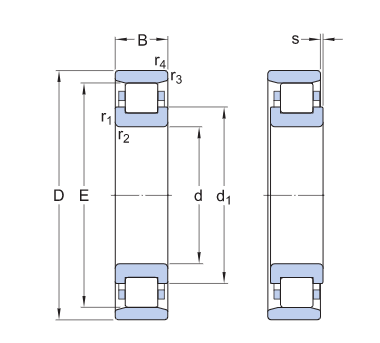

Dimensions
| d | 65 mm | Bore diameter |
|---|---|---|
| D | 120 mm | Outside diameter |
| B | 23 mm | Width |
| d1 | ≈84.4 mm | Shoulder diameter of the inner ring |
| E | 108.5 mm | Raceway diameter of the outer ring |
| r1,2 | min.1.5 mm | Chamfer dimension |
| r3,4 | min.1.5 mm | Chamfer dimension |
| s | max.1.4 mm | Permissible axial displacement |
Calculation data
| Basic dynamic load rating | C | 122 kN |
|---|---|---|
| Basic static load rating | C0 | 118 kN |
| Fatigue load limit | Pu | 15.6 kN |
| Reference speed | 6 300 r/min | |
| Limiting speed | 6 700 r/min | |
| Minimum load factor | kr | 0.12 |
| Limiting value | e | 0.2 |
| Calculation factor | Y | 0.6 |
Mass
| Mass | 1.03 kg |
Designed for versatility, N213ECP cylindrical roller bearings are ideally suited for use in a variety of industrial and commercial applications. Whether you need to support heavy loads, manage high-speed rotation, or handle challenging environments, this bearing provides the high-quality performance you need. Whether you need bearings for conveyor belts, machine tools or electric motors, this high-quality roller bearing provides the performance and durability you need.
In addition to their impressive strength and durability, N213ECP cylindrical roller bearings are designed for easy installation and maintenance. With its simple and reliable design, the bearing is easy to install and adjust, allowing you to get your equipment up and running quickly and easily.
Overall, the N213ECP cylindrical roller bearing is a high quality and reliable product offering excellent performance and durability. If your industrial or commercial application requires high quality roller bearings, this bearing is definitely worth considering. With their robust design, exceptional strength and reliable performance, the bearings are ideal for a wide range of applications from machine tools and conveyors to electric motors and other equipment. So why wait? Order your N213ECP Cylindrical Roller Bearings today and experience the best in quality, performance and durability!
