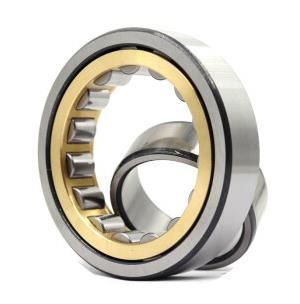

Cylindrical roller bearing NJ2216E
1. Radial bearing ability is giant which is appropriate for heavy load and have an effect on load.
2. Small friction coefficient, appropriate for excessive speed. Limit pace shut to deep groove ball bearings.
3. N kind and NU kind can go axially and can adapt to the trade of the relative role of the shaft and the shell precipitated with the aid of thermal enlargement or set up error which can be used as free cease support.
4. Inner ring or outer ring can be separated, convenient to deploy and disassemble.
Cylindrical roller bearing NJ2216E Brass cage.
NJ2216E bearings are made of high-quality materials for superior strength and durability. Its cylindrical shape efficiently transmits radial forces, while its rolling motion ensures low-friction operation. This makes it ideal for applications where high speeds and loads are frequent. In addition, it is easy to install and maintain, allowing quick inspection and replacement.
NJ2216E bearings have a high load-carrying capacity and can also accommodate axial loads in one direction, making them suitable for certain applications where thrust loads also play a role. The rollers themselves are precision crafted to provide a reliable and stable platform for your engineered system. The bearing is also designed to reduce noise and vibration levels, making it an essential part of smooth and quiet operation.

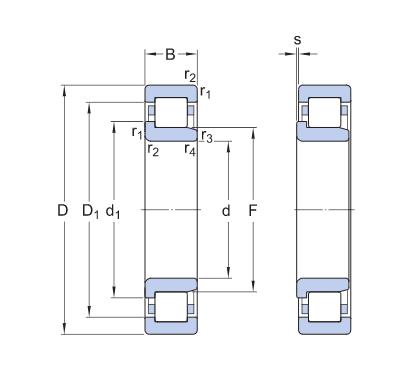

Dimensions
80 mm | Bore diameter |
140 mm | Outside diameter |
33 mm | Width |
≈101 mm | Shoulder diameter of the inner ring |
≈121.7 mm | Shoulder diameter of the outer ring |
95.3 mm | Raceway diameter of the inner ring |
min.2 mm | Chamfer dimension |
min.2 mm | Chamfer dimension |
max.1.4 mm | Permissible axial displacement |

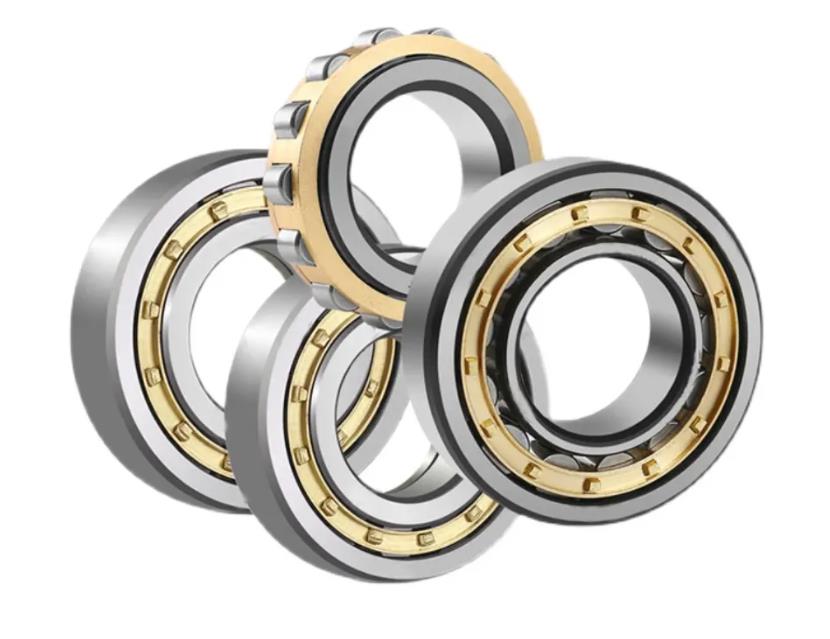

NJ series is all types offered.

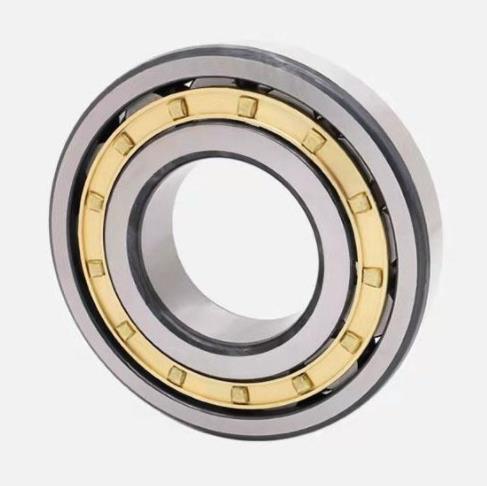

Besides NJ bearings. N series, NU series, and NUP series are also available.
Well packaged ready for customers
