Thrust ball bearing 51115
Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enable interference fit
High precision
Wear resistance
High speed
Low Noise
Widely use
Long service time
Best after-sale service

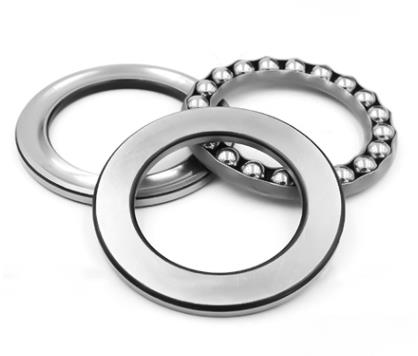

51115 thrust ball bearing
Dimensions
75 mm | Bore diameter |
100 mm | Outside diameter |
19 mm | Height |
≈100 mm | Outside diameter shaft washer |
≈77 mm | Inner diameter housing washer |
min.1 mm | Chamfer dimension washer |
Thrust ball bearings can accommodate axial loads in one direction.
They must not be subjected to any radial load.
Their separable components facilitate mounting/dismounting and maintenance inspections.
Many of the components are interchangeable.
The shaft washers have a ground bore that enables an interference fit.

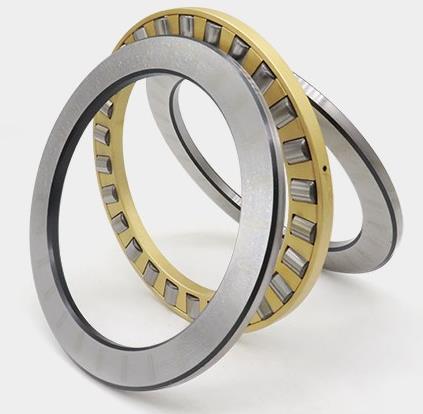

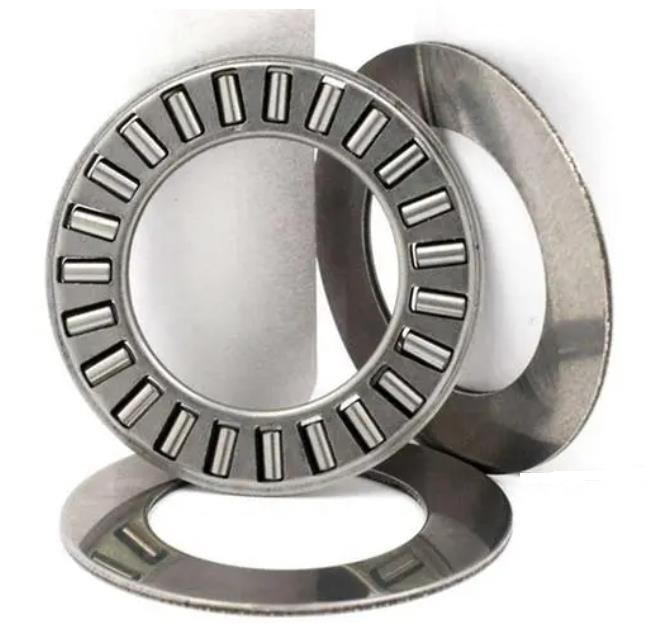

Beside thrust ball bearing, all thrust roller bearings are available.
Well packaged to custumers.
