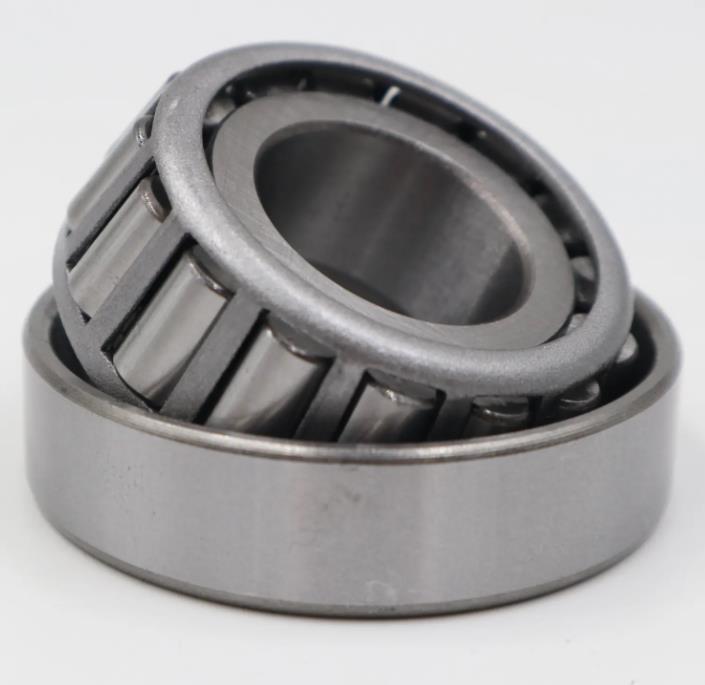

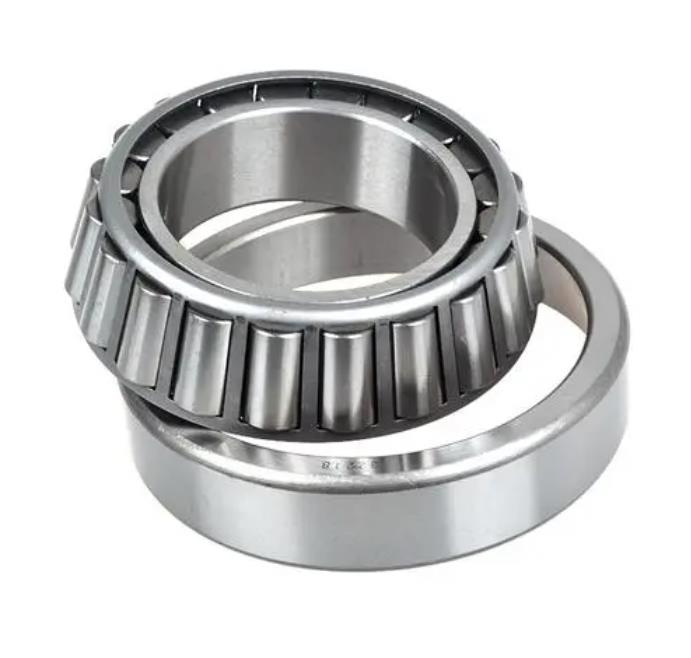

Tapered Roller Bearing 32218
Single row tapered roller bearing 32218
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components
Tapered roller bearing 32218 is a type of rolling-element bearing that has two rows of tapered roller elements and a single outer ring and inner ring assembly. It is commonly used in heavy-duty applications such as truck and trailer axles, conveyor systems, and agricultural equipment. The number 32218 refers to the bearing's size and specification, with 32 representing the series and 218 representing the bearing's inner diameter, which is 90mm. This type of bearing is designed to handle high radial and axial loads and can withstand extremely high speeds and temperatures. Its tapered design distributes load and reduces friction, making it an efficient and durable solution for heavy-duty applications.
Dimensions
Bore diameter: 90 mm
Contact angle: 15.642 °
Outside diameter: 160 mm
Width, inner ring: 40 mm
Width, outer ring: 34 mm
Width, total: 42.5 mm
Weight: 3.33kg
Packaging and transportation of Tapered Roller Bearing
Dispatched to port or the assigned address from factory direcltly.
Service of Tapered Roller Bearing
The saleman will provide the most appropriate merchandise in accordance to customer’s request. The engineer will carrier at some point of the process. The patron can discuss with engineer immediately if there is any problem.
