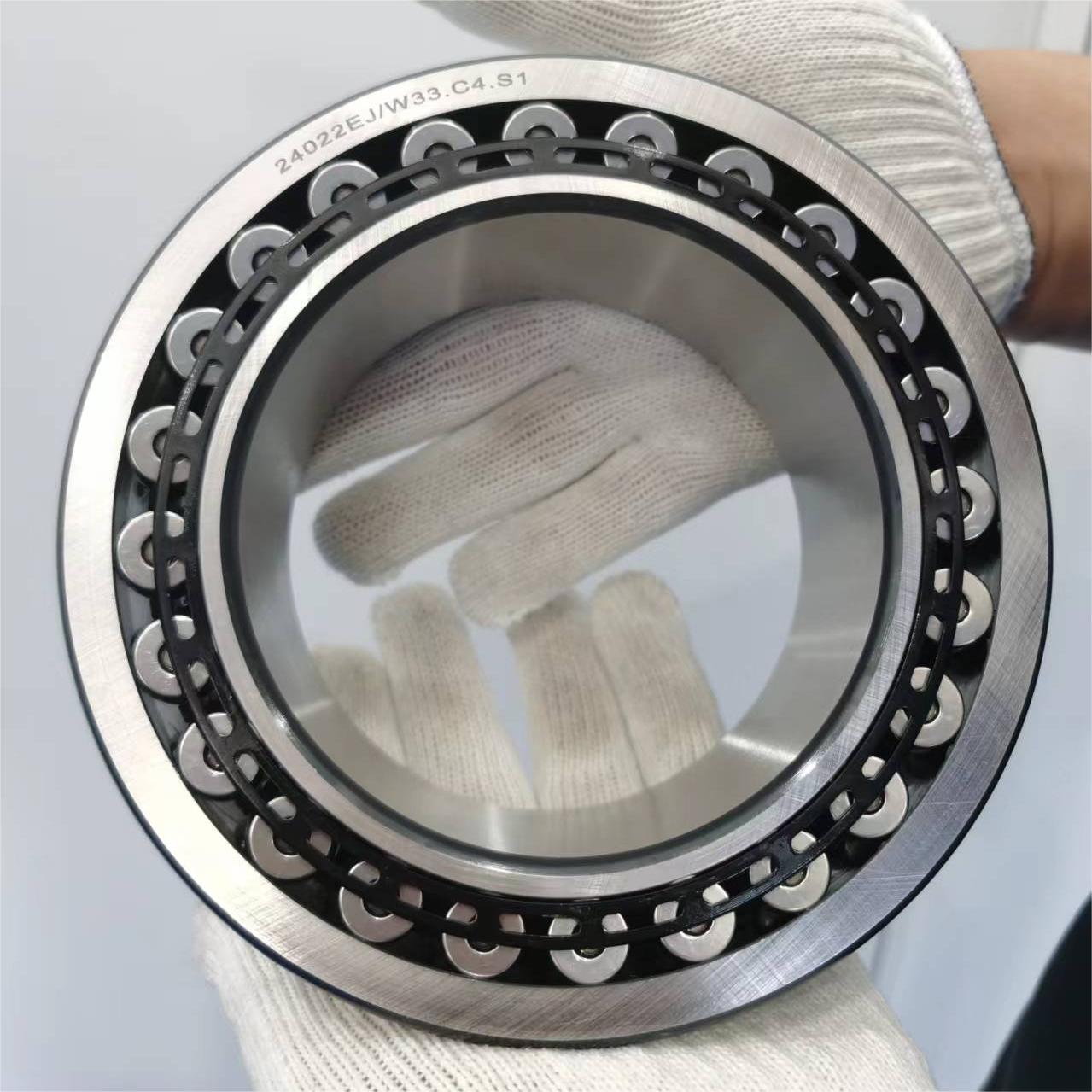

Newly designed spherical roller bearing 24022EJW33C4S1
1. Strong carrying capacity
This type bearing has a very high load capacity, and can run stably even for machines that are subjected to high-speed rotation and large torque.
2. Shock tolerance
During the operation of the machine and equipment, shock and vibration often occur, and then the bearing can effectively absorb shock and vibration to prevent bearing damage.
3. Strong applicability
Spherical roller bearings are suitable for a variety of different machines and equipment and environments, such as metallurgy, shipbuilding, chemical industry, printing, textile, etc., and have a wide range of applicability.
EJ type is our factory newly designed spherical roller bearing. Spherical roller bearings are commonly used in heavy machinery and industrial applications to support radial and axial loads. The bearings have specific features or characteristics, such as enhanced load-carrying capacity, precision tolerance, or high-speed capability indicated by the C4 clearance,also have C3 clearance.
Bearing: 24022EJW33C4S1
| Specifications | |
| Bearing Weight | 4.9 Kg |
| 10.8 lb | |
| Cage Type | EJ |
| Cage Material | Brass |
| Superseded Part | 24022CJW33C3 |

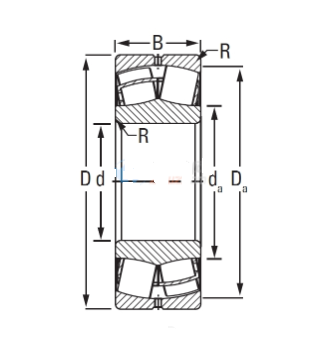

| Dimensions | |
| d - Bore | 110.00 mm |
| 4.3307 in | |
| D - Outer Diameter | 170.00 mm |
| 6.6929 in | |
| B' - Inner Ring Width | 60 mm |
| 2.3622 in | |
| B - Outer Ring Width | 60 mm |
| 2.3622 in | |
| Abutment and Fillet Dimensions | |
| da - Inner Ring Backing Diameter | 122.0 mm |
| 4.8000 in | |
| Da - Outer Ring Backing Diameter | 157.000 mm |
| 6.200 in | |
| Basic Load Ratings | |
| C0 - Static Radial Rating | 159000 lbf |
| 706000 N | |
| C1(2) - Dynamic Radial Rating (Two-Rows) | 111000 lbf |
| 493000 N | |
| Factors | |
| Reference Thermal Speed Rating (Grease) | 2500 |
This type bearing is designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.
