GE50ES-2RS spherical plain bearing
This bearing can accommodate radial and axial loads in both directions and is commonly used in various mechanical applications, including motors, pumps, and agricultural equipment. The GE50ES bearing is designed for oscillating and tilting movements, making it ideal for applications where misalignment may occur.
Spherical plain bearing GE50ES

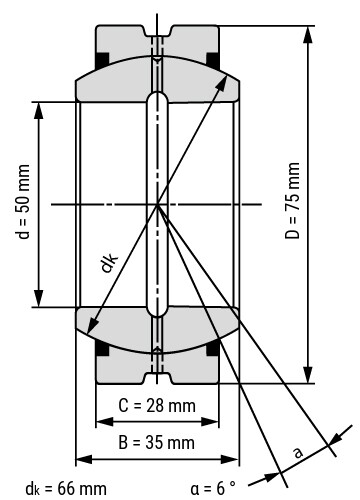

The GE50ES spherical plain bearing is a type of radial plain bearing that consists of a spherical inner ring and a spherical outer ring, separated by a layer of lubricating material. It has a bore diameter of 50mm, an outer diameter of 75mm, and a width of 35mm.
Model: GE50ES-2RS
Dimension: 50×75×35×28 (mm)
Net Weight: 0.056 (kg)
30: nominal inside diameter (not true inside diameter, because there are tolerances)
E: indicates that an axial joint is opened in the outer ring of the bearing (axial joint refers to a joint opened along the direction of the shaft)
S: indicates that the bearing has an oil groove and oil hole
RS: indicates that the bearing has one side seals, 2RS is both sides seal.
This bearing is typically made of low-carbon steel and has a sliding contact surface that is treated to resist corrosion and wear. The sliding surface may be coated with a layer of PTFE or other special materials to further reduce friction.
The GE50ES bearing is usually supplied without seals, but they are available upon request. Lubrication is typically required and provided by the user.
PIC | Dimension (mm) | Net Weight (kg) | |
GE50ES-2RS | 50×75×35×28 | 0.056 |
