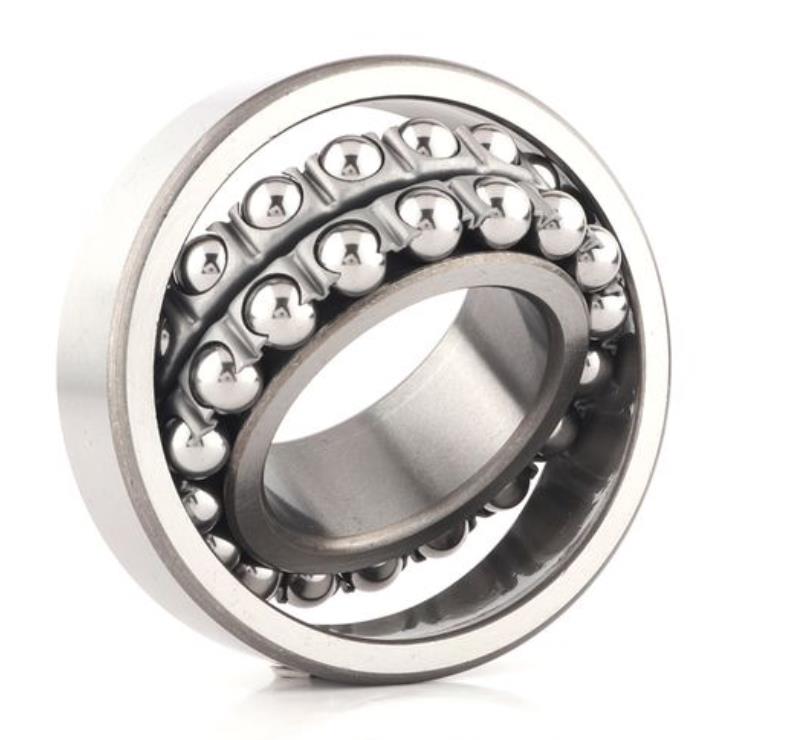

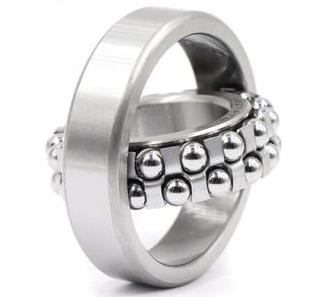

Spherical ball bearing 2210
Self-aligning ball bearings have two rows of balls, a frequent sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the internal ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, with the aid of shaft deflection.
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent mild load performance
Low friction
2210 Spherical ball bearing:

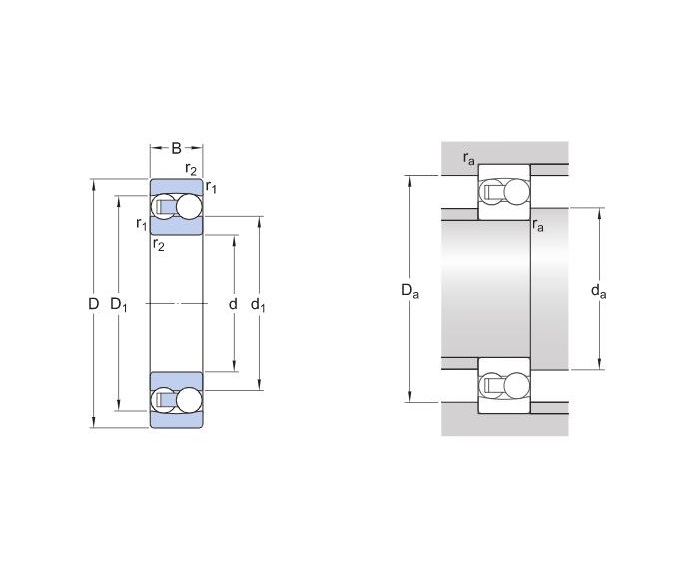

Dimensions
50 mm | Bore diameter |
90 mm | Outside diameter |
23 mm | Width |
≈61.47 mm | Shoulder diameter inner ring |
≈80.2 mm | Shoulder diameter outer ring |
min.1.1 mm | Chamfer dimension |
Abutment dimensions
min.57 mm | Abutment diameter shaft |
max.83 mm | Abutment diameter housing |
max.1.1 mm | Fillet radius |
The bearing can be used for stripping machines, dry cooling towers, construction machinery, construction machinery, road traffic, welding machine, rubber extruder, bottle blowing machine, smelting equipment, CNC machine tools, compressors, concrete mixer, trash cans, wear-resisting pumps, prototyping machines, other not classified, stone machinery, injection molding machine, sewing equipment, and so on.
