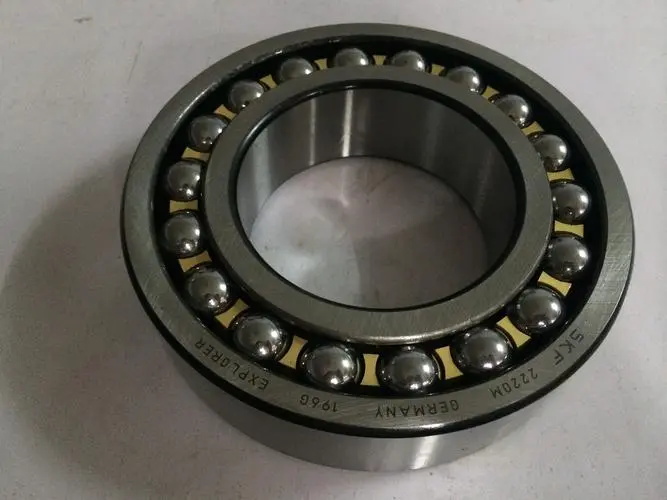

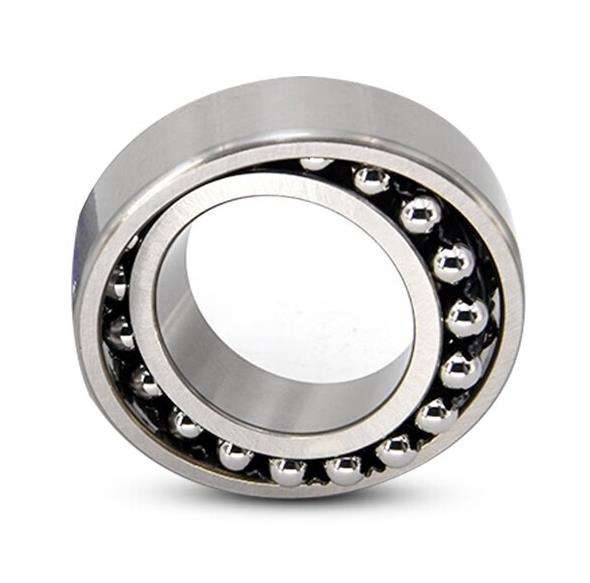

2220M Self-aligning ball bearing
Fast delivery
Best quality
Good after-sale service
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent mild load performance
Low friction
Ball bearing, self-aligning bearing,2220
Are you looking for a reliable and efficient solution to your mechanical needs? Then look at 2220M self-aligning ball bearings. This innovative product is specifically designed to provide improved performance and durability for a wide range of industrial applications.
2220M self-aligning ball bearings are constructed of high-quality materials including durable steel and precision engineered components for exceptional strength and durability. It is also designed for easy installation and maintenance, making it an excellent choice for busy factories and workshops.

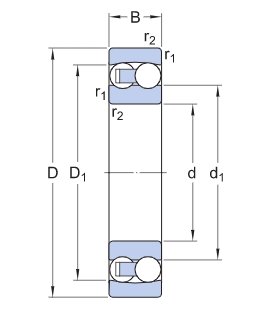

Dimensions
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 180 mm | Outside diameter |
| B | 46 mm | Width |
| d1 | ≈124 mm | Shoulder diameter inner ring |
| D1 | ≈156.9 mm | Shoulder diameter outer ring |
| r1,2 | min.2.1 mm | Chamfer dimension |

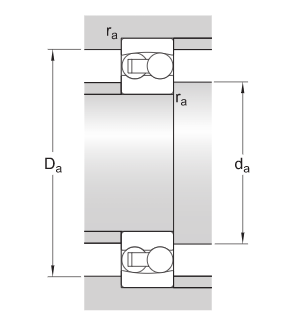

Abutment dimensions
| da | min.112 mm | Abutment diameter shaft |
|---|---|---|
| Da | max.168 mm | Abutment diameter housing |
| ra | max.2 mm | Fillet radius |
Mass
| Mass bearing | 5 kg |
One of the key features of the 2220M self-aligning ball bearings is their ability to maintain perfect alignment in even the most demanding environments. This makes it particularly suitable for heavy-duty applications such as those in the mining, construction and agricultural sectors.
With a maximum load capacity of up to 4750 N, 2220M self-aligning ball bearings easily support the heaviest loads. Its advanced design also ensures smooth and consistent performance even at high speeds and extreme pressures.
At the same time, the 2220M self-aligning ball bearing also has excellent durability and wear resistance, ensuring that it can provide reliable performance for a long time without replacement.
Finally, 2220M self-aligning ball bearings are backed by a comprehensive warranty and outstanding customer support, ensuring you have access to all the resources you need to keep your machine running at peak performance.
So if you are looking for a high quality, durable and reliable solution for your industrial machinery needs, look no further than 2220M Self Aligning Ball Bearings. With its advanced technology and excellent performance, it is sure to meet your every need.
