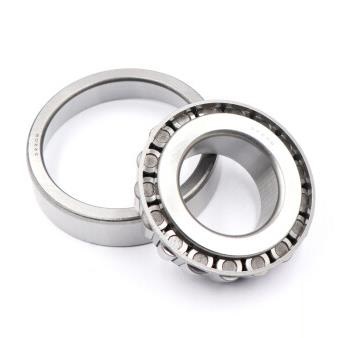

Taper roller bearing 32219
Suitable to heavy duty machinery.
Undertake both radial and axial loads.
Request good lubrication.
Widely used to many industries.
Taper roller bearing 32219
Single row tapered roller bearings are designed to accommodate mixed radial and axial masses and furnish low friction all through operation. The internal ring, with rollers and cage, can be hooked up one after the other from the outer ring. These separable and interchangeable factors facilitate mounting, dismounting and maintenance. By mounting one single row tapered curler bearing towards every other and making use of a preload, a inflexible bearing utility can be achieved.

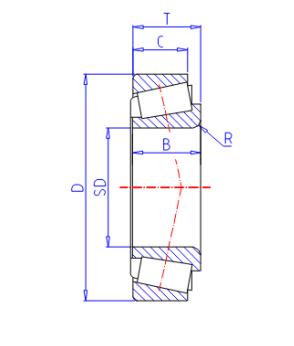

Dimensions
Bore diameter: 95 mm
Contact angle: 15.642 °
Outside diameter: 170 mm
Width, inner ring: 43 mm
Width, outer ring: 37 mm
Width, total: 45.5 mm
Weight: 4.09kg

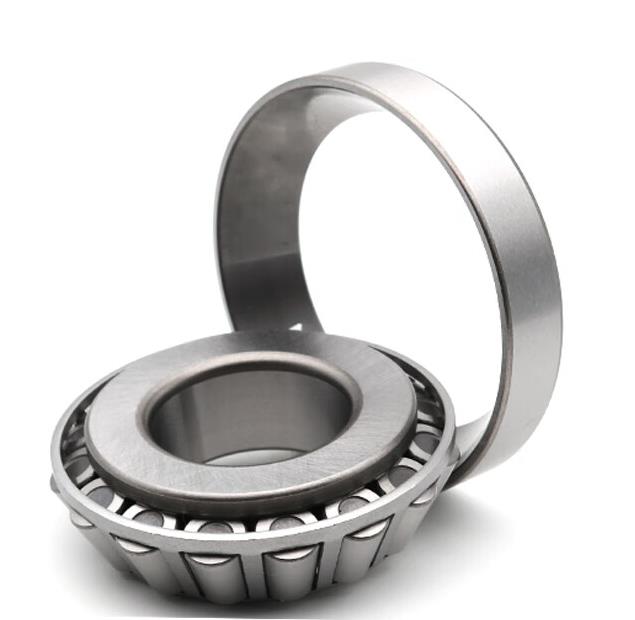

Tapered roller bearing is separate type. It includes inner ring and outer ring. Inner ring is with rollers and cage. Both inner ring and outer ring have tapered raceway.
Also tapered roller bearing has single row type,double row type and four row type.
widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.
