SNL plummer (pillow) block housings in the 30, 31 and 32 sequence are strong and appropriate for challenging running conditions. They allow the integrated bearings to attain most provider lifestyles with much less want for maintenance. Different housing editions and seal designs are available, making the use of tailor-made housings genuinely pointless and enabling low-priced bearing preparations to be made.
SNL housing enables the fitted bearing to last its full service life while reducing need for maintenance.
This helps users to further reduce maintenance costs.
Besides other features, the housing has excellent stiffness and is not affected by excessive tightening of the connection bolts.
Another benefit is that the SNL housing can be fitted with a variety of standard seals.

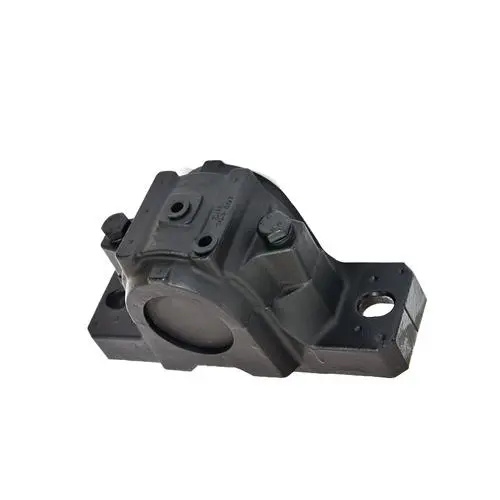

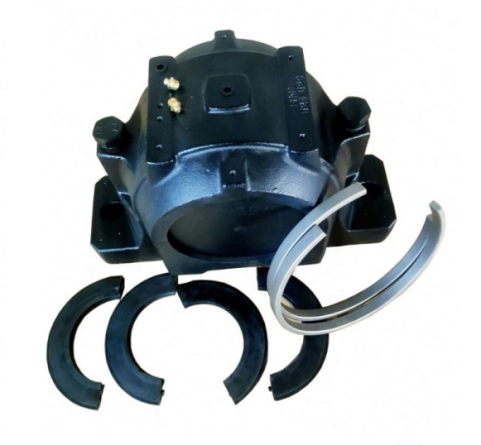

SNL3148 HOUSING
Infomation
Dimensions
Diameter of bearing housing: 400 mm
Width of bearing housing: 148 mm
Centre height (pillow block): 240 mm
Centre distance between bolt holes: 600 mm
Centre distance between bolt holes (axial direction): 150 mm
Attachment bolt diameter: 30 mm
Properties
Housing type Plummer/pillow block
Housing configuration Two-piece
Mounting arrangement Through shaft/Shaft end
Number of bolt holes for fasteners 4
Material, housing Cast iron
Bearing housing seal type Without
Housing lubrication feature/possibility Grease
