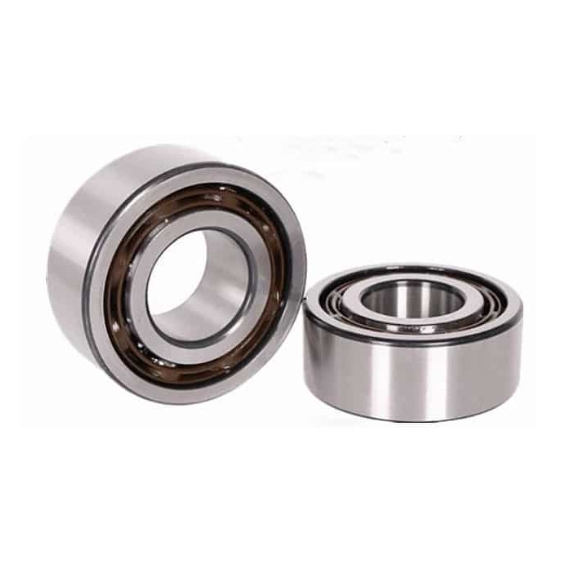

5200 5200-2RS 5200-ZZ Radial ball bearing double row angular contact ball bearing
Starting with the 5200, this radial ball bearing adopts a double row angular contact ball bearing design, providing excellent load carrying capacity and superior performance. It enables high-speed rotation and smooth operation, making it ideal for various industries including automotive, aerospace and manufacturing.

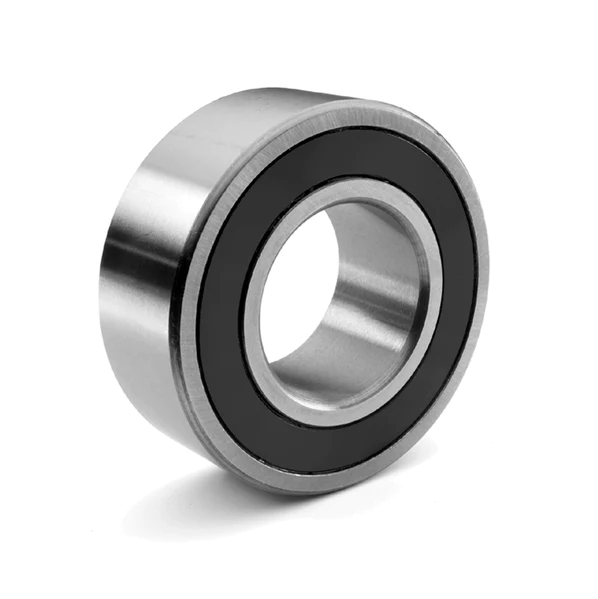

Next up is the 5200-2RS, which has the added benefit of rubber seals. These seals are designed to keep contaminants out, ensuring longer life and greater durability. Ideal for environments where dust, dirt or moisture may be present, the 5200-2RS provides reliable, maintenance-free operation.
Finally, we have the 5200-ZZ radial ball bearing, which features a metal guard that provides superior protection against debris and other external factors. These guards prevent the ingress of contaminants, extending bearing life and minimizing maintenance needs. Whether in harsh or dusty environments, the 5200-ZZ ensures maximum reliability and long-lasting performance.
We are introducing the 5200 Series Radial Ball Bearing, a high-performance, versatile solution for your angular contact ball bearing needs. The series consists of 5200, 5200-2RS and 5200-ZZ, each offering unique features to enhance your application.
Bearing Dimensions Instructions
Basic parameters | model | 5200 |
series | Double row angular contact ball bearing | |
Overall dimensions | d | 10 |
D | 30 | |
B | 14.3 | |
r small chamfer | 0.6 | |
Rated load | Cr rated dynamic load | 7150 |
C0r rated static load | 3900 | |
Cr rated dynamic load | 730 | |
C0r rated static load | 400 | |
Limit speed | Grease grease lubrication | 17000 |
Oil oil lubrication | 22000 | |
bearing code | 5200 | |
Installation size | a0 | 14.5 |
da | 15 | |
Da | 25 | |
ra | 0.6 | |
Mass Weight(kg) | 0.05 |
No matter which variant you choose, 5200 series radial ball bearings are constructed from high-quality materials to ensure durability and efficiency. These bearings are designed and manufactured to industry standards to ensure optimal performance even under the most demanding conditions.
Additionally, the 5200 Series is available in a variety of sizes and configurations and can be easily integrated into different applications and equipment. From small machinery to large industrial systems, these bearings offer the flexibility and versatility to meet your specific requirements.
In summary, the 5200 series radial ball bearings are the perfect choice for users looking for a double row angular contact ball bearing solution. With models 5200, 5200-2RS and 5200-ZZ, you can easily find the ideal bearing to meet your needs, ensuring efficient operation and longevity. Trust the quality and reliability of the 5200 Series to take your applications to new performance heights.
