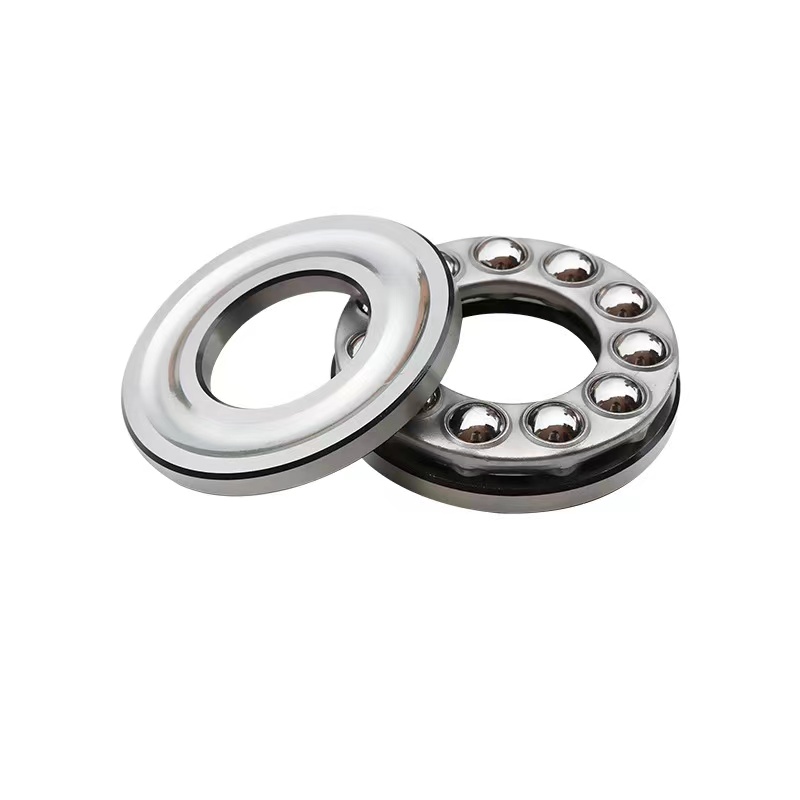

Thrust ball bearing with flat seat 51100
1.High-quality bearing steel
Long service life,high precision and low friction,high mechanical efficiency,easy tpo start.
2.Smooth surface
The bearing steel has high and uniform hardness and clear lettering.
3.A variety models
Choose a match according to the needs of workmanship.
4.Suitable for a variety of occasions
It is suitable for machine parts with axial load and low rotation speed,such as crane hooks,vertical water pumps,vertical centrifuges,jacks,low-speed reducers,etc.

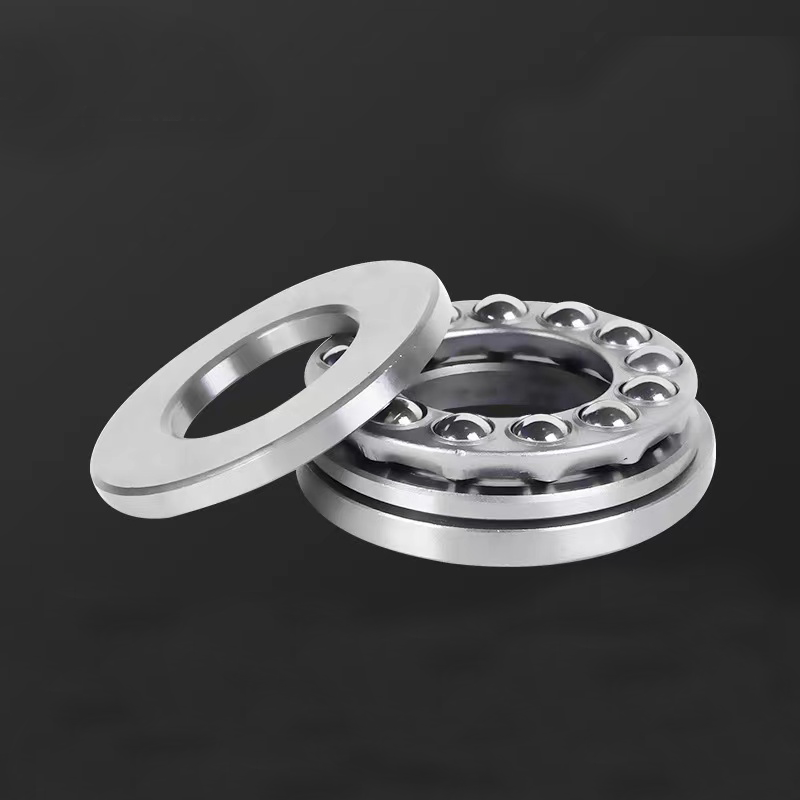

Plane thrust ball bearing with flat seat 51100
Unmarried path, deep-groove thrust ball bearing for applications that assist heavy axial hundreds in a single course
Open bearing for lubrication applied in the area
Via-hardened chromium metal for sturdiness and resistance to deformity beneath heavy masses
Sheet metal retainer evenly areas rollers for reduced friction, vibration, and noise
Grooved raceways for higher speeds and thrust-bearing capability than flat washers

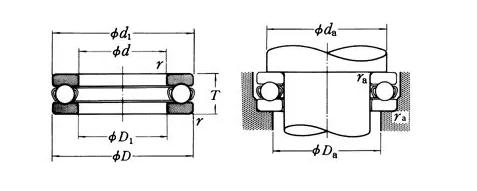

Bore diameter | Outside diameter | Width | Retainin frame and materials | Standard number | Accuracy level |
| 10mm | 24mm | 9mm | Carbon steel | GB/T10445-1989 | P0 |
This single-row thrust ball bearing has grooved raceways, a 90-degree contact angle, a metal cage, and an open creation. it is appropriate for moderate-speed programs that support heavy axial hundreds in one direction and no radial loads.

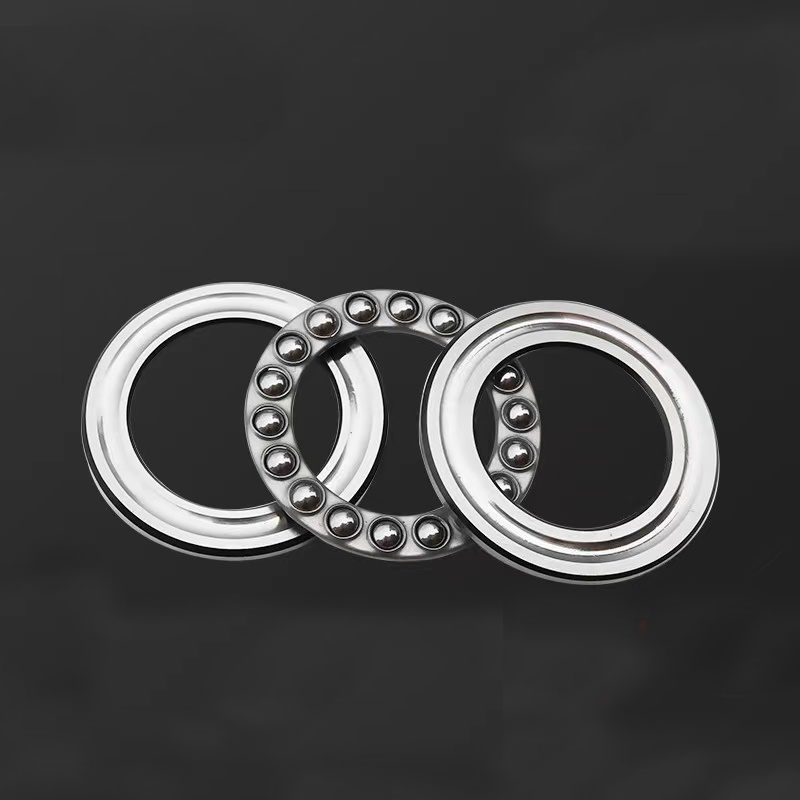

This deep-groove thrust ball bearing consists of a housing-locating washing machine (ring), a shaft-finding washer, and a ball and cage assembly. the washers have grooved raceways that comply with the balls rotating among them, permitting higher speeds and thrust bearing potential than bearings with flat raceways. the unmarried-row layout helps thrust hundreds in a single direction and tolerates axial deflection, and the open creation lets in for the bearing to be lubricated in the region.
This bearing has a 90-diploma touch perspective in which the ball and inner and outer raceway contact points are on an aircraft parallel to the axial load, which permits the bearing to obtain high axial pressure. the balls and washers are made of a low-alloy, via-hardened chromium metallic for sturdiness, heat tolerance, and resistance to deformity underneath heavy hundreds, and the sheet metal cage prevents the balls from getting into touch with each different during use, reducing friction, vibration, and noise. this bearing is separable so it mounts greater without difficulty than nonseparable bearings because its additives may be set up independently. it can be used at working temperatures from -30 degrees c to 150 c (-22 degrees f to 302 f).
This thrust ball bearing has a pn (regular) tolerance magnificence score for dimensional accuracy and is appropriate for applications including gadget device drive shafts, automobile steerage gears and clutches, rotary tables, outboard motor propellers, and household home equipment.
