Tapered Roller Bearing 32215
High radial and axial load carrying capacity
Accommodate axial masses in one direction
Low friction and lengthy provider life
Separable and interchangeable aspects
Single row tapered roller bearings are designed to accommodate mixed radial and axial masses and supply low friction all through operation. The internal ring, with rollers and cage, can be hooked up one after the other from the outer ring. These separable and interchangeable factors facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing towards every other and making use of a preload, a inflexible bearing software can be achieved.

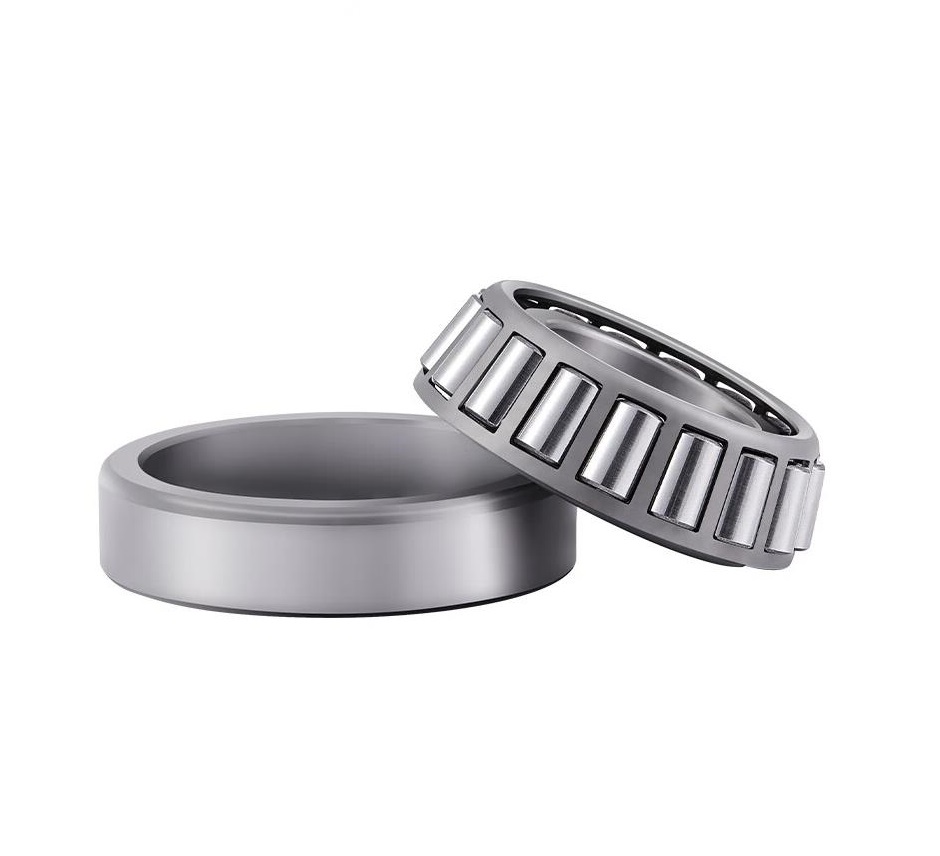

Taper roller bearing 32215.
Dimensions
d 75 mm Bore diameter
D 130 mm Outside diameter
T 33.25 mm Total width
d1 100.65 mm Shoulder diameter of inner ring
B 31 mm Width of inner ring
C 27 mm Width of outer ring
r1,2 min. 2 mm Chamfer dimension of inner ring
r3,4 min. 1.5 mm Chamfer dimension of outer ring
a 29.25 mm Distance side face to pressure point
Weight: 1.67kg

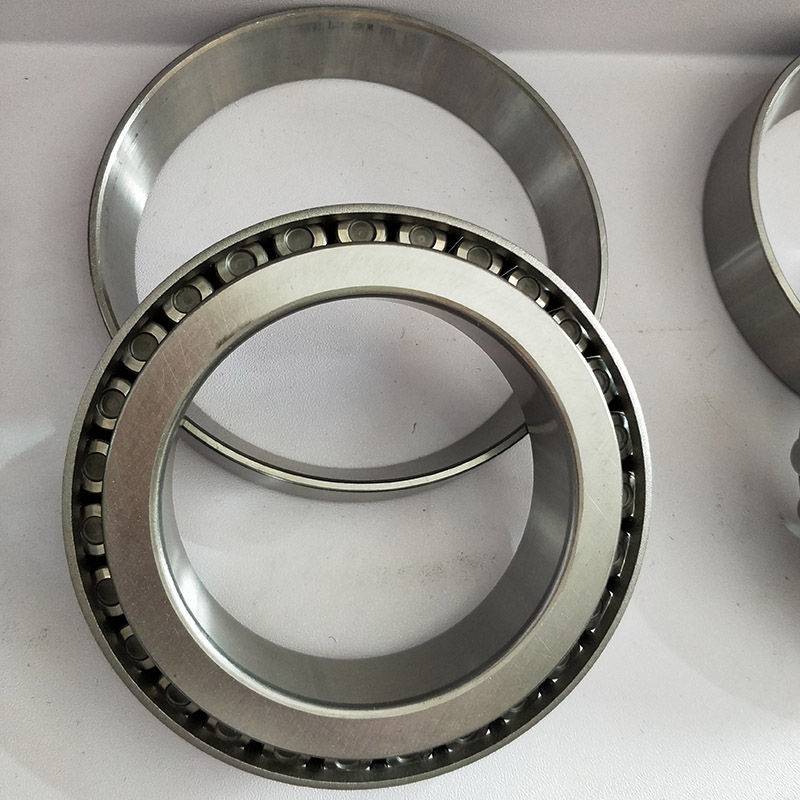

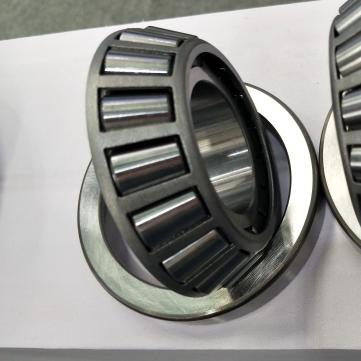

Tapered roller bearing is separate type. It includes inner ring and outer ring. Inner ring is with rollers and cage. Both inner ring and outer ring have tapered raceway.

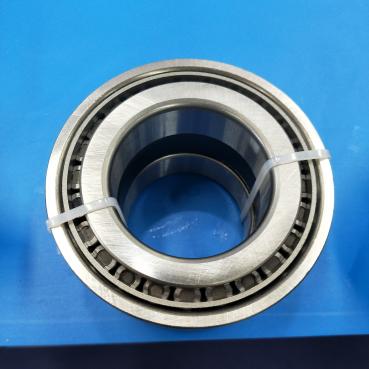

Tapered roller bearing has single row type,double row type and four row type. Also it has metric type and non-standard imperial type.
Packaging and transportation of Tapered Roller Bearing
Dispatched to port or the assigned address from factory direcltly.
Service of Tapered Roller Bearing
The sales will select the most suitable products according to customer’s request. The engineer will track the usage throughout the process. The customer can communicate with engineer directly if there is any problem.
