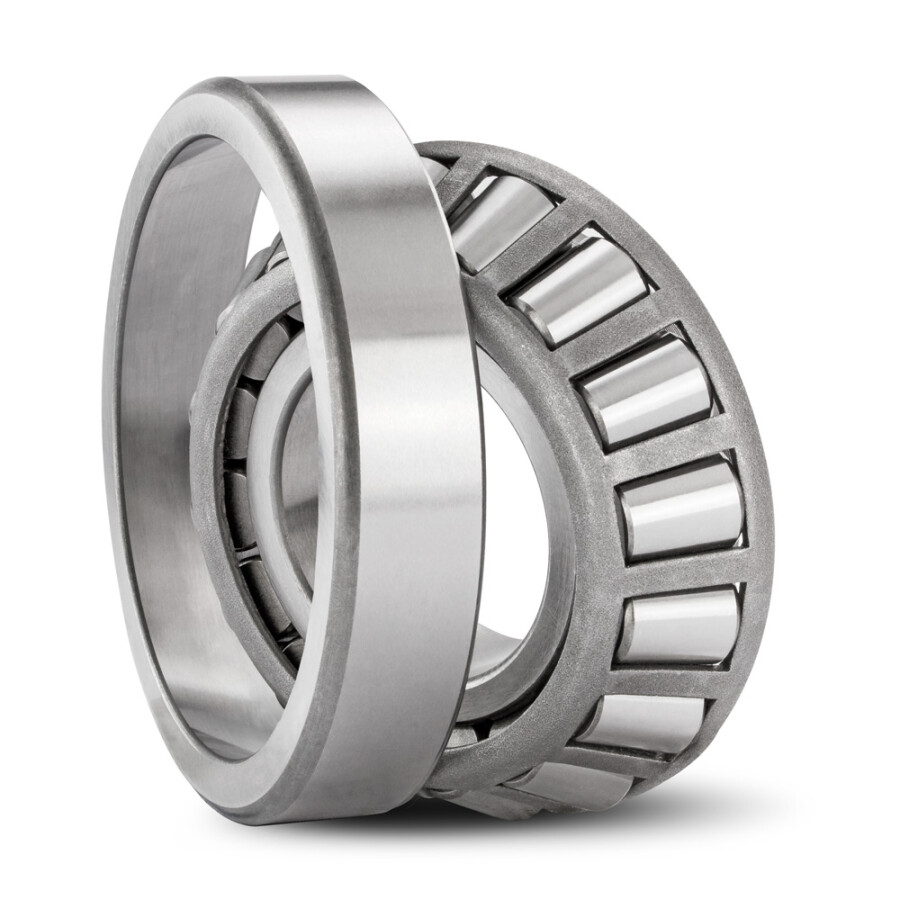

31310 Single row taper roller bearings
31310 single row tapered roller bearings are designed to house combined radial and axial hundreds and offer low friction all through operation. the internal ring, with rollers and cage, may be mounted one by one from the outer ring. those separable and interchangeable additives facilitate mounting, dismounting and upkeep. by using mounting one single row tapered roller bearing against any other and making use of a preload, a inflexible bearing utility can be completed.
Excessive radial and axial load carrying ability
Accommodate axial hundreds in a single direction
Low friction and lengthy service life
Separable and interchangeable additives
31310 Single row taper roller Bearings
As part of a separable tapered roller bearing unit, this single cone and cup set has an open design that allows for lubrication and accurate adjustments. This tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems in heavy-duty industries such as mining, construction and agriculture, among others.

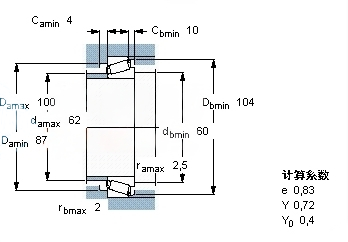

Detailed parameters and installation dimensions:
Part Number | 31310 |
Bearing Type | Tapered Roller Bearings, Single Row |
Bearing Size (metric) | 50,.0 mm * 110.00 mm * 29.25 mm |
Weight | 1.25kg |
Precision Rating | Standard class precision |
116000 N | radial dynamic load capacity (Dyn. Cr) |
124000 N | radial static load capacity (Stat. Cor) |
3200 r/min | Maximum RPM (Speed in grease) |
4300 r/min | Maximum RPM (Speed in oil) |
