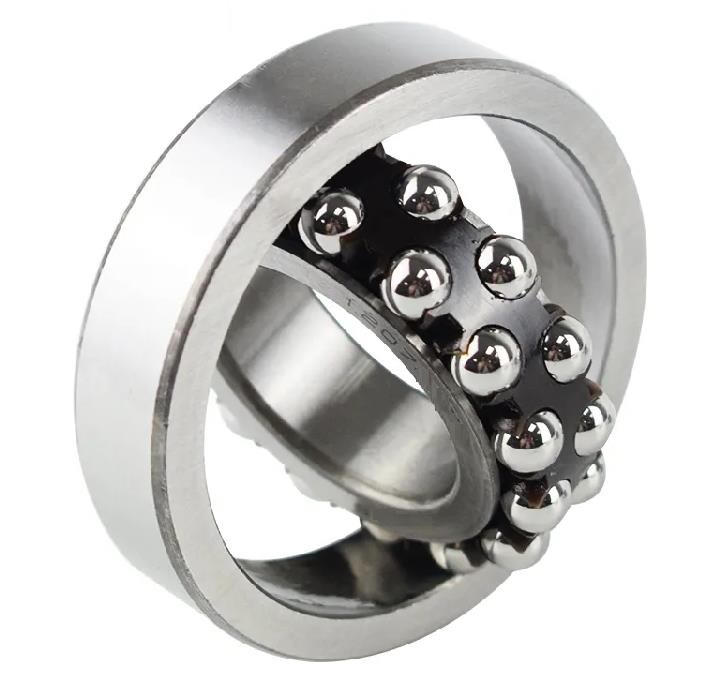

Self-aligning ball bearing 1207
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent mild load performance
Low friction
The self-aligning ball bearing 1207 has an outer diameter of 72mm, an internal diameter of 35mm, and a width of 17mm. It has two rows of balls and is designed to permit for misalignment of the shaft relative to the housing. This kind of bearing is oftentimes used in functions the place there may additionally be moderate shaft deflection or misalignment, such as in conveyor structures or printing presses. The 1207 mannequin is a famous measurement and can be determined in quite a number industrial and manufacturing settings.

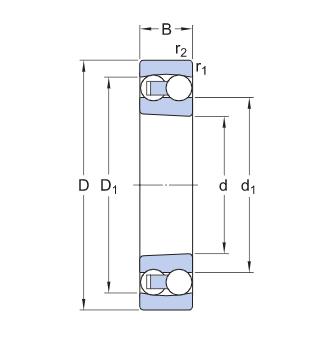

Dimensions
Main demensions | 35 × 72 × 17 | Bore Dia × Outside Dia × Width Dia (mm) |
ID | 35 mm | Inside diameter(I.D.) |
OD | 72 mm | Outside diameter(O.D.) |
T(B) | 17 mm | Thickness(W.D.) |
C | 15.8 kN | Radial dynamic load rating |
C0 | 5.1 kN | Radial static load rating |
Grease rpm | 8500 r/min | Reference speed |
Oil rpm | 10000 r/min | Limiting speed |
M | 0.323 kg | Weight |
Abutment dimensions
| Da | max.65 mm | Abutment diameter housing |
|---|---|---|
| ra | max.1.1 mm | Fillet radius |

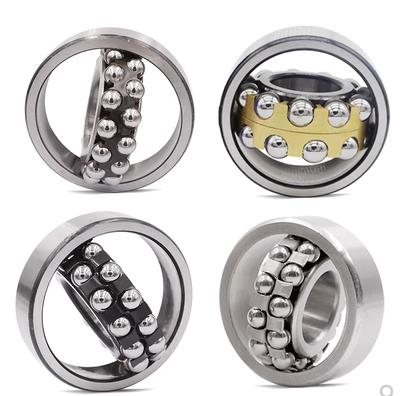

Different types of cages can be selected.
