Pillow block bearing CSA205-14
Good versatility and interchangeability
Adjustable and easy to install
It can work in harsh environments

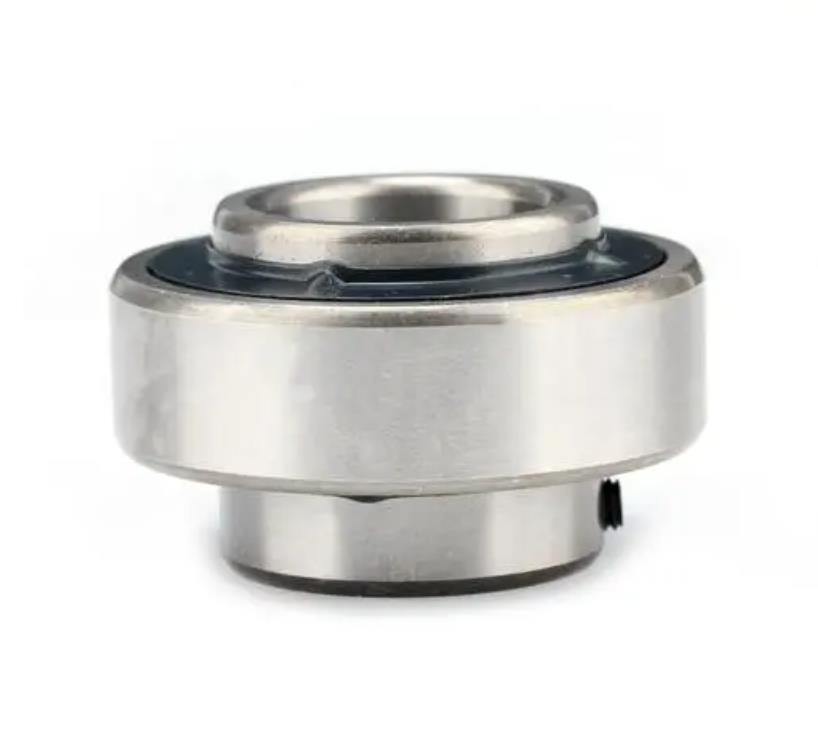

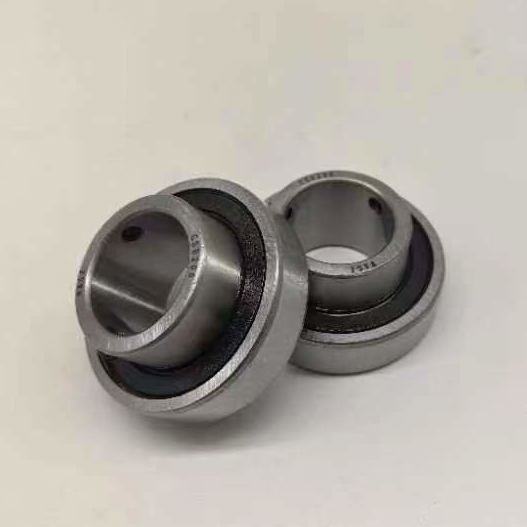

Pillow block bearing CSA205-14, This type is insert bearing. No blocks.
Insert bearing is usually consisting of two parts, one of which is mounted on a stationary machine bed and the other is mounted on a rotating shaft. The bearing can withstand large radial and axial loads, but also can withstand large impact loads and vibration loads.
| Bearing No. | Shaft Dia | Dimensions(mm)/(in.) | |||||||||||
| d | D | C | B | B1 | S | h | B3 | d1 | Dynamic Cr | Static Cor | Weight(kg) | ||
| (in.) | (mm) | ||||||||||||
| CSA201 | 12 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.14 | |
| CSA201-8 | 1/2 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.14 | |
| CSA202 | 15 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA202-10 | 5/8 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA203 | 17 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA203-11 | 11/16 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA104-12 | 3/4 | 42 | 12 | 16.14 | 26.42 | 6 | 13.2 | 33 | 9380 | 5000 | 0.12 | ||
| CSA204-12 | 3/4 | 47 | 14 | 21.4 | 30.9 | 7.5 | 4 | 13.5 | 33.3 | 12800 | 6650 | 0.18 | |
| CSA204 | 20 | 47 | 14 | 21.4 | 30.9 | 7.5 | 7 | 13.5 | 33.3 | 12800 | 6650 | 0.15 | |
| CSA205-14 | 7/8 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.21 | |
| CSA205-15 | 15/16 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.19 | |
| CSA205 | 25 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.19 | |
| CSA205-16 | 1 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.18 | |
Insert bearing is actually a variant of the deep groove ball bearing, which is characterized by the spherical surface of the outer diameter of the outer ring, and can be matched into the corresponding concave sphere of the bearing seat to play the role of aligning. The outer spherical bearing is mainly used to bear the radial and axial combined load based on the radial load, and it is generally not suitable to bear the axial load alone.
