Pillow block bearing UCT210
Maintenance-free
Special seals design
Secure localization
Aligning ability
Light weight and high strength
Precise fit of housing and outer ring of insert bearing
The interchangeability of bearings

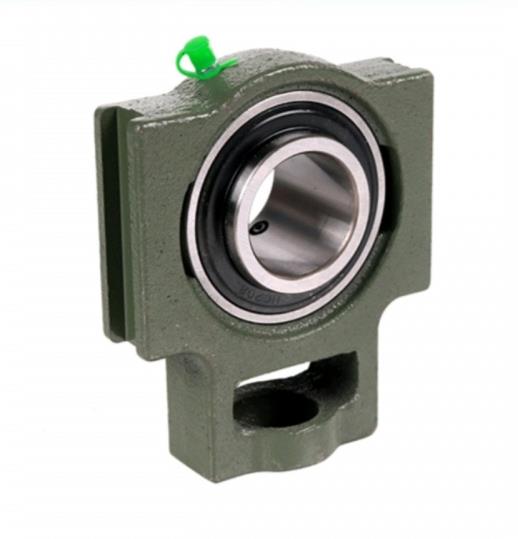

UCT210 is the assembly of pillow block T210 and insert bearing UC210
The UCT210 pillow block bearing, also known as a take-up unit bearing, is designed specifically to accommodate a vertical shaft or a shaft that needs to be adjusted in height.
The bearing itself is pre-lubricated with grease for reduced friction and longer life.
The UCT210 bearing has a unique design that includes an adjustable slot that accommodates the height of the shaft. This allows for easy adjustment of the bearing's position for better alignment and reduced vibration.
Another key feature of UCT210 is its wide inner race and self-alignment capabilities that compensate for shaft misalignment and reduce the chances of bearing failure.
Additionally, it also uses a set screw locking mechanism to securely attach the shaft to the bearing and prevent rotation.
Overall, the UCT210 pillow block bearing is a versatile and reliable solution for applications that require vertical shaft adjustment and alignment.

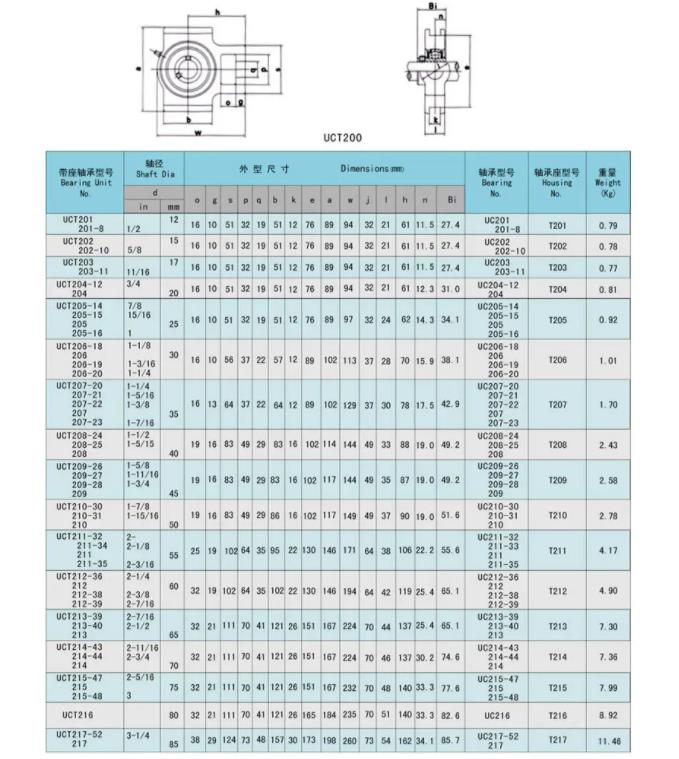

The UCT210 pillow block bearing has a bore diameter of 50 mm, an overall length of 206 mm, and a bolt-hole spacing of 159 mm. The height of the unit is 117 mm and the width is 51.6 mm.
Diameter
