Linear guideway HGH25CA

Durable and Anti-corrosion cracking;
High temperature resistance;
Easy to install;
Low noise;
High quality;
Small order accept;
Good after-sale service;

Price

$15.70

Contact Now E-Mail Telephone WhatsApp

Product Details

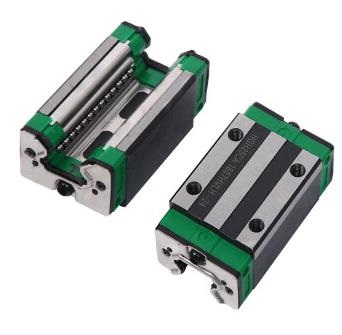

Linear guideway；Linear bearing HGH25CA

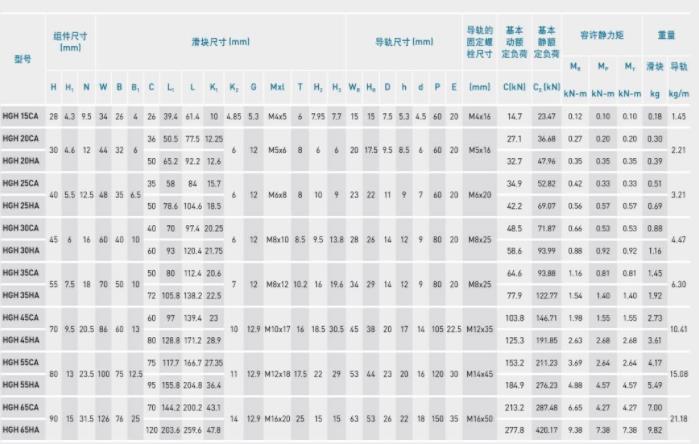

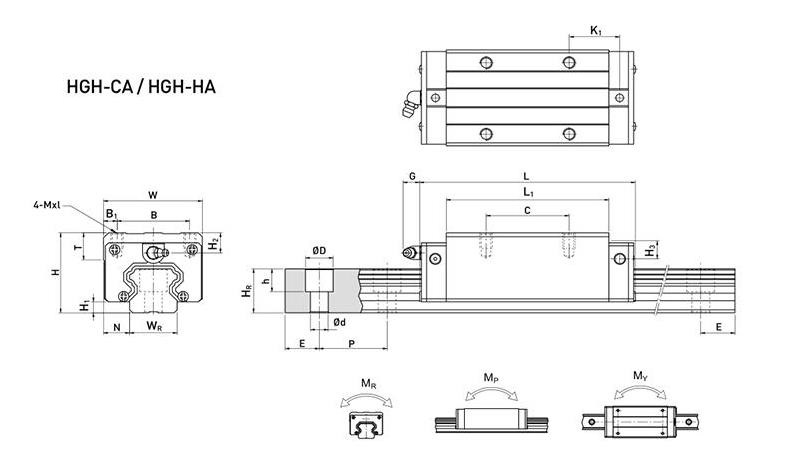

Diameter of HGH..CA series:

hgh size.jpg

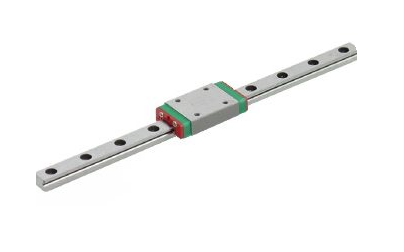

HG Series linear guideways are designed with load potential and stress greater than different comparable merchandise with circular-arc groove and shape optimization. It aspects 4-way equal load potential in the radial, reverse radial and lateral directions, and are self-aligning to soak up installation-error. HG collection linear guideways reap a lengthy existence with excessive speed, excessive accuracy, and easy linear motion.

These are all new in manufacturing unit packaging. Shipping is free inside the contiguous US. Each buy consists of a full set of rail bolt caps and grease fittings. Please use the selector above to order 1 or two rails with 1 or 2 blocks per rail in something size you would like.
