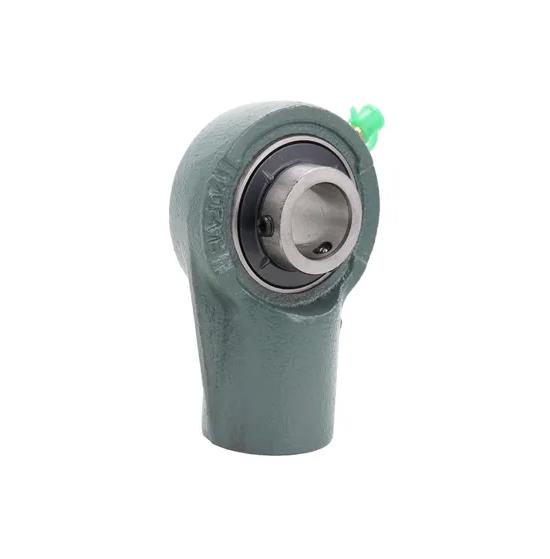

Pillow block bearing UCHA205
With advanced technology, using a unique automatic aligning bearing manufacturing line
Implement full automation from the processing quality inspection.
UCHA205 is a type of pillow block bearing. It's insert bearing with a housing outside.
UCHA205 is mainly used in engineering machinery, machine tool, automobile, metallurgy, mining, petroleum, machinery, electric power, railway and other industries. UCHA205 of our company is with reasonable price, quality assurance and all-round service to meet customer needs.
SHAFT SIZE
mm 25

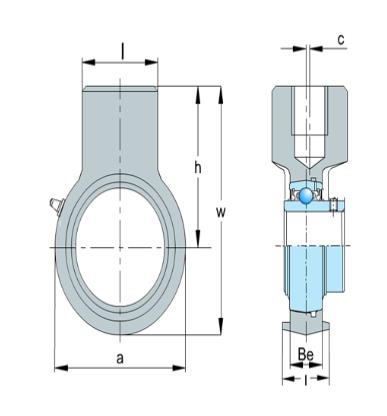

MAIN SIZE (mm)
a 77.8
w 103.2
c 0
h 63.9
l 39.7
D 19.1
k1 NPSM-3/4
Bi 34.0
n 14.3
m 19.7
BEARING UC205
HOUSING HA205
NUMBER UCHA205
WEIGHT
Kg1.0
Bearing is the heart of machinery, choosing a suitable bearing will greatly improve the production efficiency of mechanical equipment and save maintenance costs.
In addition to the standard products, there are heat resistance, corrosion resistance, dust resistance and other rolling bearings with seats that can withstand a variety of harsh environments. In order to meet the diverse needs of customers, our company has successively invested in small lightweight bearing components, stainless steel series, ceramic series and other components, and has been well received by all parties.
