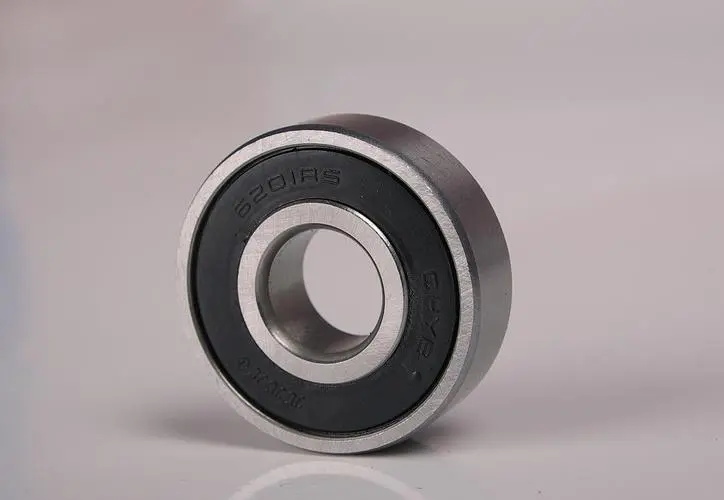

6201-2RS Deep groove ball bearing
Single row deep groove ball bearings with seals on one or each aspects are in particular versatile, have low friction and are optimized for low noise and low vibration, which permits excessive rotational speeds. They accommodate radial and axial hundreds in each directions, are effortless to mount, and require much less protection than different bearing types. The essential sealing can drastically extend bearing provider existence due to the fact it maintains lubricant in the bearings and contaminants out.
Integral sealing prolongs bearing provider life
Simple, versatile and strong design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little upkeep
6201-2RS Deep groove ball bearing

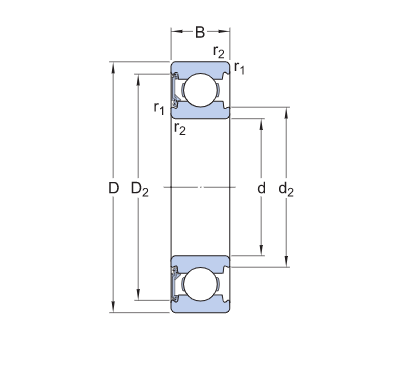

Dimensions
d | 12 mm | Bore diameter |
---|---|---|
D | 32 mm | Outside diameter |
B | 10 mm | Width |
d2 | ≈16.2 mm | Recess diameter |
D2 | ≈27.34 mm | Recess diameter |
r1,2 | min.0.6 mm | Chamfer dimension |
