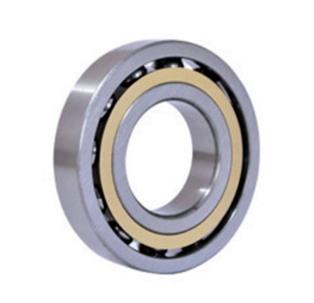

High precision 7216BECBM Angular contact bearing
The contact angle of the bearing is typically 40°, which makes it suitable for high-speed applications. The 7216BECBM angular contact bearing is usually supplied with a standard cage made of machined brass. Overall, this bearing provides high precision, low friction, and stable operation under high-speed and high-load conditions.
7216BECBM is angular contact bearing with nylon cage. There are also steel and brass cage.
It is commonly used in high-speed precision applications such as machine tool spindles, pumps, and motors. The bearing has an inner diameter of 80mm, an outer diameter of 140mm, and a width of 26mm.
| ID | 80mm |
| OD | 140mm |
| T | 26mm |
The "BE" in the bearing code indicates that it is a single-piece inner and outer ring, and "CB" stands for a universal design with normal axial internal clearance. "M" indicates that the bearing is machined brass as opposed to a pressed steel or plastic cage.
The 7216BECBM bearing has an angular contact design, meaning that the balls and the raceways are oriented at an angle to each other. This allows the bearing to handle both radial and axial loads and provides greater rigidity and higher stiffness than other types of bearings.
The contact angle of the bearing is typically 40°, which makes it suitable for high-speed applications. The 7216BECBM angular contact bearing is usually supplied with a standard cage made of machined brass. Overall, this bearing provides high precision, low friction, and stable operation under high-speed and high-load conditions.
