High precision 7207 Angular contact bearing
7207 angular contact bearing is a famous object in industrial and automobile applications.
During set up or maintenance, it is necessary to observe producer guidelines, use splendid tools, and make certain suitable lubrication to lengthen its lifespan and make certain most fulfilling performance.
High-speed capability
Accommodate distinctly immoderate radial loads and massive unilateral axial loads

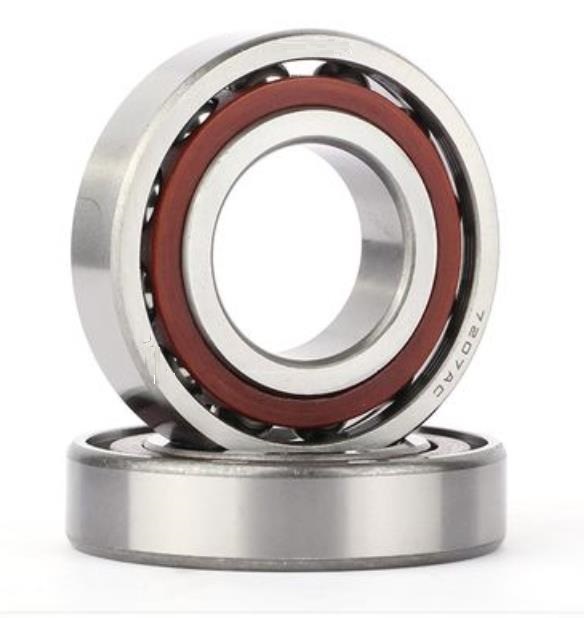

7207 angular contact bearing has a bore size of 35mm, an outer diameter of 72mm, and a width of 17mm. It is commonly made of chrome steel or stainless steel and is designed to withstand high-speed and high-load conditions. It is commonly used in machine tools, automotive applications, and agricultural equipment.
Dimensions
35 mm | ID |
72 mm | OD |
17 mm | W |
≈49.65 mm | large side face |
≈41.96 mm | small side face |
≈58.25 mm | large side face |
31 mm | Distance side face to pressure point |
min.1.1 mm | Chamfer |
min.0.6 mm | Chamfer |
Mass | 0.28 kg |

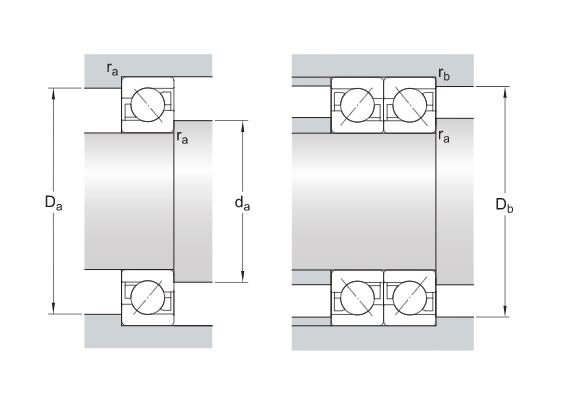

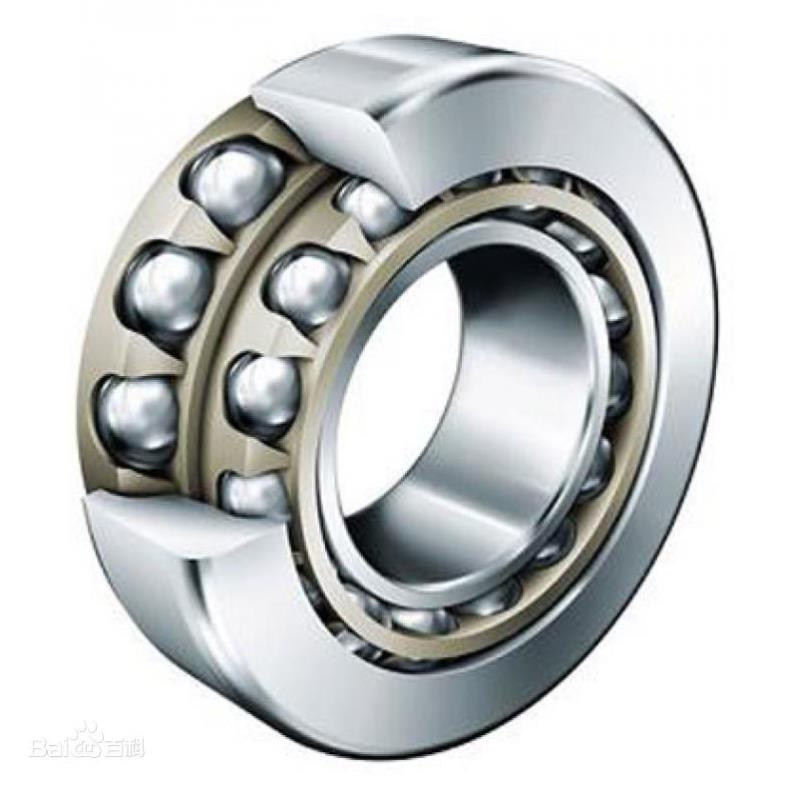

The bearing is designed with an angular contact between the ball and raceway, permitting it to take care of each radial and axial loads. The contact attitude of the bearing is generally 15, 25, or 40 degrees, with smaller contact angles imparting greater radial and axial load capacities. The 7207 bearing is normally installed in pairs the place the two bearings are oriented in contrary instructions to counteract any axial loads. This layout offers steady operation, low friction, and excessive precision. The bearing is normally made of metal and may additionally be sealed or open.
