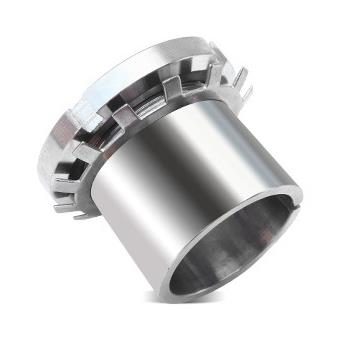

Bearing sleeve H2310
Not easy to rust, high hardness, high wear resistance
Fine workmanship, use process and mechanical coordination operation effect is good
Low noise
Easy to install
With locking nut
With locking device
The adapter sleeve is the most common bearing attachment used to fix bearings with tapered holes to cylindrical journal, and can be used on optical shafts or stepped shafts. The set sleeve is notched and supplied with KM lock nut and MB lock washer.

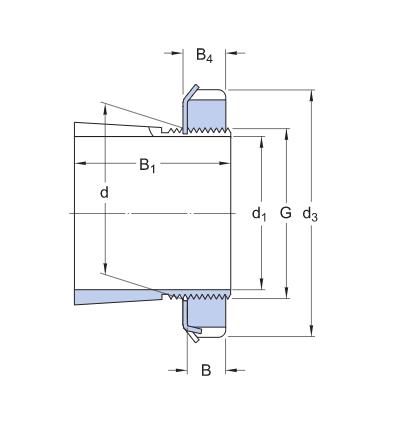

Dimensions
d1 45 mm Bore diameter
d 50 mm Outside diameter small taper
d3 70 mm Outside diameter lock nut
B1 55 mm Width
B 11 mm Width lock nut
B4 12 mm Width lock nut including lock washer
G M50x1.5 Thread
1:12 External taper
Weight
0.38kg
Before installation, the installation surface of the tight sleeve and the removal sleeve should be carefully cleaned, without sharp corners and burr. If there is a raised part, it should be polished with professional sandpaper in time to avoid mutual wear between the bearing and the shaft, affecting the assembly accuracy. The friction surface on the shaft should be coated with butter.
